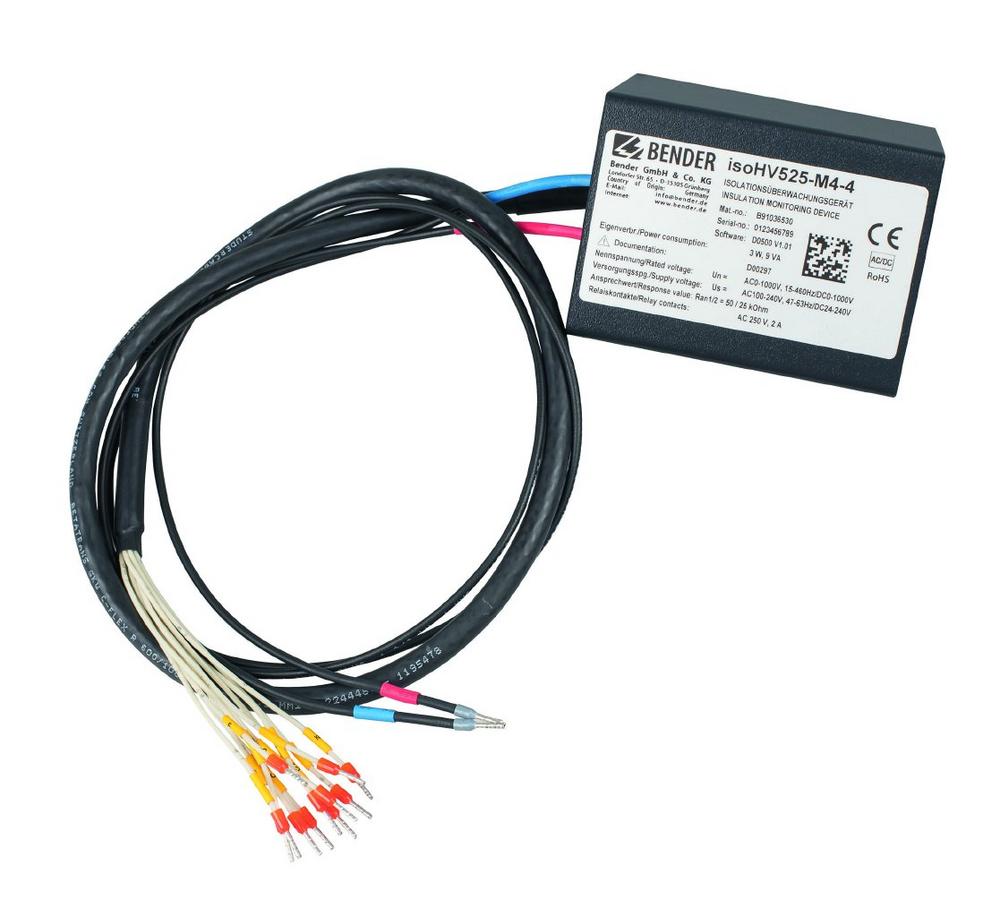

This compact unit is housed in a sealed case, making it suitable for use in applications that are exposed to extreme environmental conditions, such as high temperatures, humidity and pollution. At the same time, it satisfies the high shock and vibration requirements. This makes it particularly suitable for use in generators and vehicles. The device is connected to the installation via a cable.
Two variants of the isoHV525 are available:
• isoHV525-M4-4 with a 0-10 V analogue output
• isoHV525-S4-4 with a serial RS-485 interface
For both ISOMETER®s, device parameters are initially assigned by the manufacturer. However, parameterisation of the isoHV525-S4-4 is also possible via the RS-485 interface with BMS protocol, for example by means of a BMS-Ethernet gateway (COM465IP) or Modbus RTU. In addition, different measured values, e.g. insulation resistance, leakage capacitance and mains voltage can be read via the serial interface.
