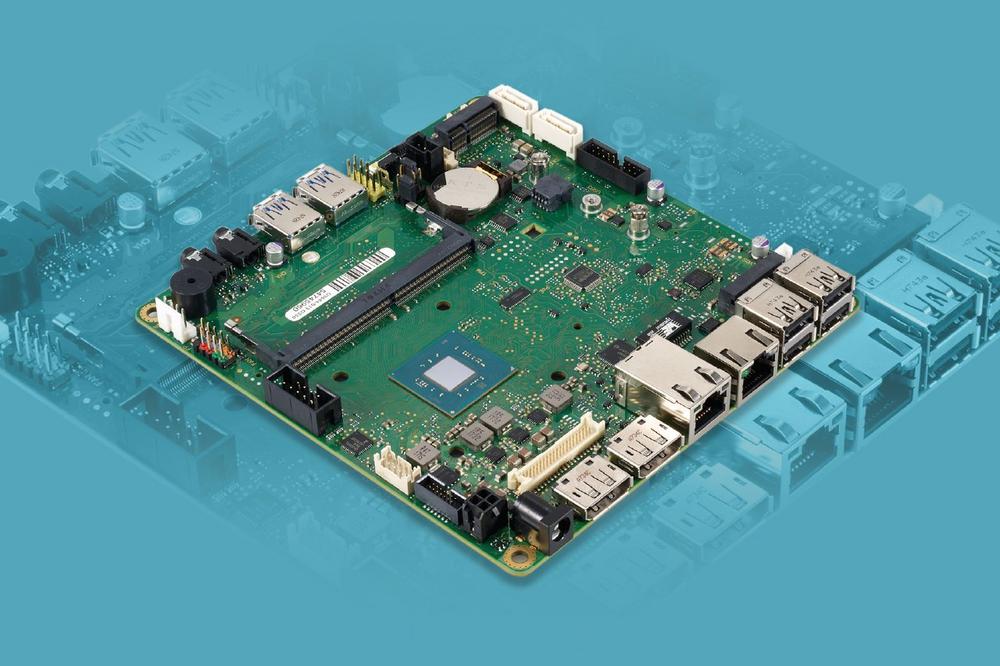

The compact D3544-S mainboard has dimensions of 147 mm x 140 mm and corresponds to the new Mini-STX form factor. This makes it possible to build particularly compact, yet powerful systems. In addition, Mini-STX boards require less power than larger format mainboards. Three processor versions are available, ranging from Intel Celeron J4105 and J4005 to the powerful J5005 with integrated graphics chip from the Intel UHD Graphics 600 series.
The D3544-S industrial mainboard has numerous interfaces such as USB 2.0 and USB 3.1, SATA and 2x Gigabit Ethernet. With a dual DisplayPort, an internal dual channel 24bit LVDS and an embedded DisplayPort, all models offer extensive connectivity options for high-resolution displays. WLAN and Bluetooth modules can be integrated via an M2 interface.
Power is provided by an internal or external 8-24V power supply.
With the Fujitsu Kit Solution, available from MSC, an industry computer optimized for the application can be put together. The D3544-S mainboard is developed and produced by Fujitsu at its factory in Augsburg, Germany.
Visit Avnet Integrated Solutions/ MSC Technologies at embedded world 2018 in Nuremberg, Hall 2, Booth 238.
From idea to design and from prototype to production, Avnet supports customers at each stage of a product’s lifecycle. A comprehensive portfolio of design and supply chain services makes Avnet the go-to guide for innovators who set the pace for technological change. For nearly a century, Avnet has helped its customers and suppliers around the world realize the transformative possibilities of technology. Learn more about Avnet at www.avnet.com.
MSC Technologies, the technology brand of Avnet Integrated Solutions, specialises in intelligent embedded and display solutions for a range of different industrial applications. MSC Technologies, based in Stutensee, Germany, represents well-known manufacturers of TFT, touch and passive displays and offers customer-specific display solutions based on in-house technologies. In the embedded sector, MSC Technologies has many years of development and production expertise that ranges from COM Express, Qseven and SMARC 2.0 modules through to complete systems. It also provides wireless, storage and lighting solutions. With its consulting competence and full-service offering, MSC Technologies secures a competitive advantage for its customers with premium-quality solutions and long-term availability. MSC Technologies and Avnet Integrated serve customers in the entire EMEA region. Further information under www.msc-technologies.eu
