- AMD V1000 APU
- Up to 32 GB DDR4 RAM with ECC
- Up to 4 Digital Display Interfaces (DP, eDP, HDMI, DVI)
- Hardware memory encryption
- Safety-relevant supervision functions
- Up to -40°C to +85°C Tcase, conduction cooling
- VITA 59 in process, compliant with COM Express Basic, type 6
- PICMG COM.0 COM Express version also available

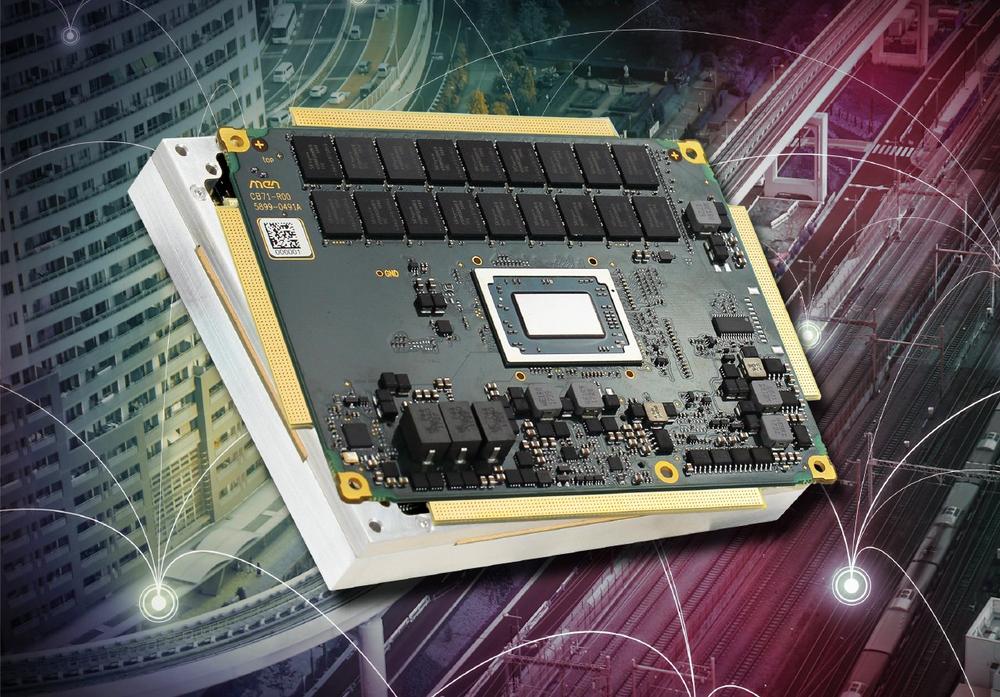

The CB71C is an ultra-rugged COM Express module for rail, public transportation and industry applications, e.g. data acquisition, infotainment, transcoding and live 3D. It is 100% compatible with COM Express Type 6 Pin-Out and conforms to the VITA 59 standard, which specifies robust mechanics to ensure reliable operation even under the harshest environmental conditions.
Perfect for Harsh Environments
The CB71C is based on AMD’s V1000 APU family. It is equipped with a Radeon Vega next-generation 3D graphics engine with up to 11 compute units, and supports up to 4 displays with a resolution of up to 4k without the need for additional graphics hardware. With up to four high-performance processor cores, the CB71C is also suitable for virtualization.
Based on the Rugged COM Express standard, the CB71C is embedded in a closed aluminum frame, which ensures optimum EMC protection and efficient conduction cooling supporting a temperature range of -40°C to +85°C. To withstand serious shock and vibration, only soldered components are used.
The CB71C can be equipped with a wide range of long-term available processors with scalable performance, all supporting ECC. Passive cooling is possible with low-power versions. The CB71C can be equipped with up to 32 GB of directly soldered DDR4 main memory and a 16 GB eMMC. Available high-speed interfaces include PCI Express 3.0 links, DDI (DP, eDP, HDMI), SATA 3.0, Gigabit Ethernet and USB 3.0.
The board features an advanced board management controller with monitoring functions for safety-relevant applications. In addition, the CB71C has a Trusted Platform Module and supports hardware memory encryption, providing protection against both physical and inter-VM storage attacks. This is essential for security-critical applications such as payment and ticketing terminals, fleet management or monitoring.
MEN Mikro Elektronik – Profile and Mission
“Reliable Embedded Computing for a World in Motion.”
Since its founding in 1982, MEN Mikro Elektronik has focused on innovation, reliability and flexibility to develop and produce standard and custom computing solutions that employ the highest technology levels. The company – with approx. 300 employees worldwide – provides a robust offering of highly reliable embedded COTS boards and devices widely used in extreme environmental conditions found in mobile, industrial and safety-critical applications.
- Safe computers and systems certifiable up to SIL 4 and DAL-A
- Robust built-to-order box PCs
- Panel PCs for HMIs and digital signage
- Pre-configured built-to-order 19” systems
- Rugged CompactPCI boards and systems
- Network components in compact box format or 40 HP format
- Robust computer-on-modules for individual system designs
For individual requirements, starting with development through design-in and beyond, MEN provides its customers with advice and support as well as with system design, configuration and environmental qualification in accordance with industry standards.
The company’s core competencies encompass x86 and RISC processor architectures, development rules for safe applications, analog I/O design, FPGA technology and Windows, Linux and real-time operating systems. Additional expertise includes RAMS and obsolescence management as well as the development of computing hardware for operation in harsh and extreme environmental conditions. Development, production and on-site testing laboratories guarantee traceability and high-quality products.
MEN Mikro Elektronik’s computer solutions are used in harsh mission- and safety-critical environments found in the rail and public transport markets and the embedded electronics markets (automation, aerospace, power & energy, off-road, medical, marine and other industries).
The company is certified to ISO 9001, ISO 14001 (environment), EN 9100 (aerospace) and IRIS (railway) quality management systems, provides systems according to ISO 7637-2 (road traffic) requirements and is a member of several industry associations, consortiums and alliances, including VITA and PICMG.
