Furthermore, the company has its own ready-mix concrete plant and supplies concrete in all grades. The vehicle fleet consists of three truck mixers and two concrete pumps.

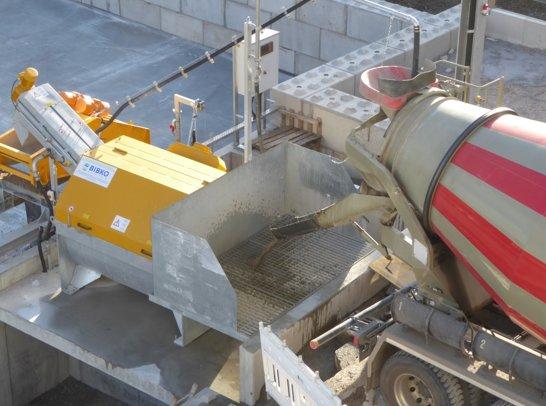

In order to solve the problem of disposal of the residual concrete and the accumulating washing water, the decision was taken with the ecological conviction of a modern company to invest in a residual concrete recycling plant. The delivery was preceded by a corresponding project planning phase in which the local conditions were considered. The ComTec trough system was chosen in order to be able to process the accumulating residues quickly. The machine was placed underground on account of an existing height offset. The advantage of this is that the charging hopper is at floor level. This allows concrete pumps to be washed out in addition to the truck mixers on the same hopper without an additional system being required for washing out the concrete pumps. A 2 metre-long screw conveyor discharges the washed-out material.
The system is fitted with a complete recycling water treatment plant. After filling the truck mixer with recycling water, the residual concrete is discharged via the charging hopper directly into the machine. Here, solids > 0.2 mm are washed out and removed appropriately. The water containing the fines < 0.2 mm flows via a water drain into an agitator tank. The agitator tank is equipped with an agitator. This keeps the fines in the residual water in motion by means of cyclic stirring and prevents settling. The water containing the fines is fed back to the mixing process. Furthermore, the machine is equipped with a sand and gravel separation system to ensure higher quality of the washed-out solids through the separation.
Through the installation of the Bibko® recycling system, Amos has shown itself to be a modern company that takes its ecological responsibility seriously by resource conservation. The Bibko® ComTec system features the 1,700-times proven, patented bearing that was located outside of the water bath to prolong its service life. Furthermore, the machine was hot dip galvanized, is winterproof and fitted with a hinged aluminium cover.
