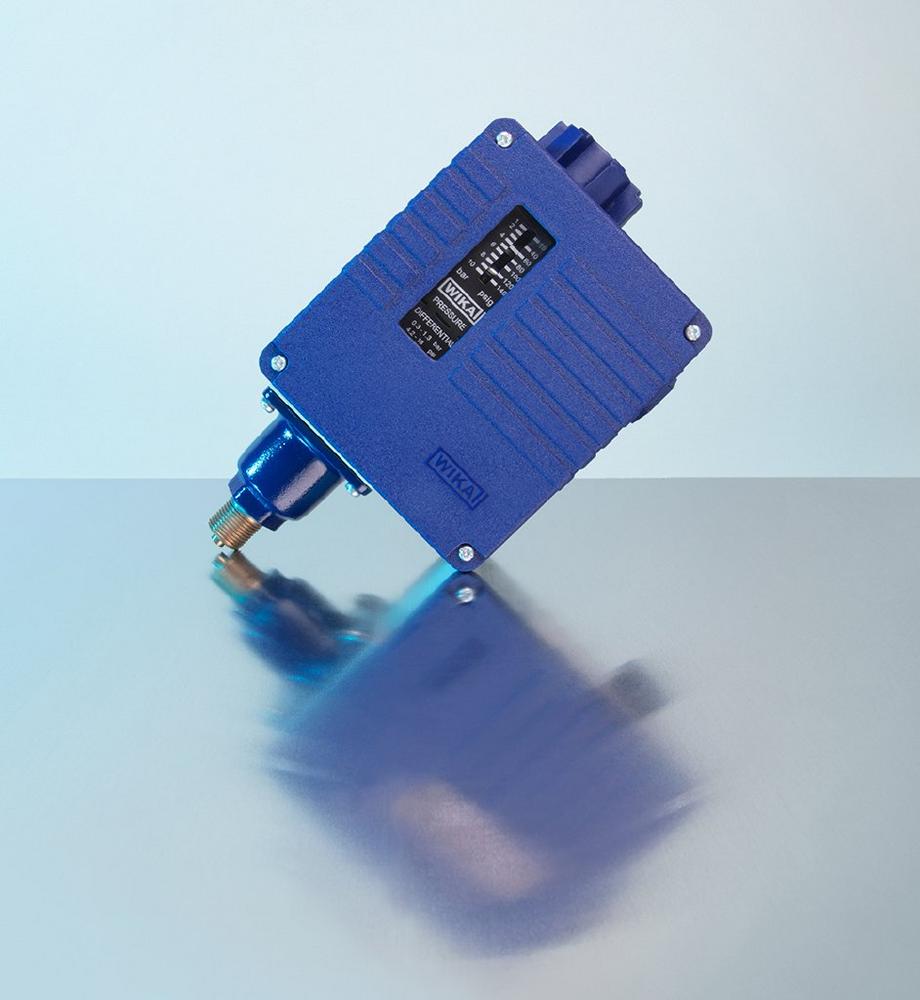

The new instrument switches electrical loads up to AC 230 V / 10 A with a non-repeatability of the switch point of ≤ 1 %. The high accuracy ensures that the machine operates optimally and, through that, also safeguards the quality of the manufactured products.
The pressure switch can be delivered both with setting ranges for gauge pressure (0 … 300 mbar to 10 … 30 bar) and with vacuum setting ranges (-1 … 0 bar and -0.8 … +5 bar).
It is thus also suitable for monitoring vacuum circuits, such as with cleaning processes. The robust instrument has an ingress protection of IP67. Furthermore, there is a PSM-550 in a version for medium temperatures up to 170 °C, which has wetted parts from stainless steel.
Over the past 60 years, WIKA Alexander Wiegand SE & Co. KG has built a reputation as a renowned partner and competent specialist for any task in the field of pressure, temperature and level measurement. On the basis of a steadily growing efficiency, innovative technologies are applied when developing new products and system solutions. The reliability of the products and the readiness to face all challenges of the market have been the key factors for WIKA to achieve a leading position in the global market. Within the WIKA group 9,000 employees are dedicated to maintaining and improving technology in pressure and temperature measurement. Within our sales organisation you will find more than 500 skilled and experienced employees to talk to. More than 250 engineers and technicians are continually searching on behalf of WIKA to provide solutions for innovative products, improved materials and more economical production methods. In close cooperation with recognised universities, institutes and industrial companies solutions for specific applications are developed.
