WINDBOX quality as usual

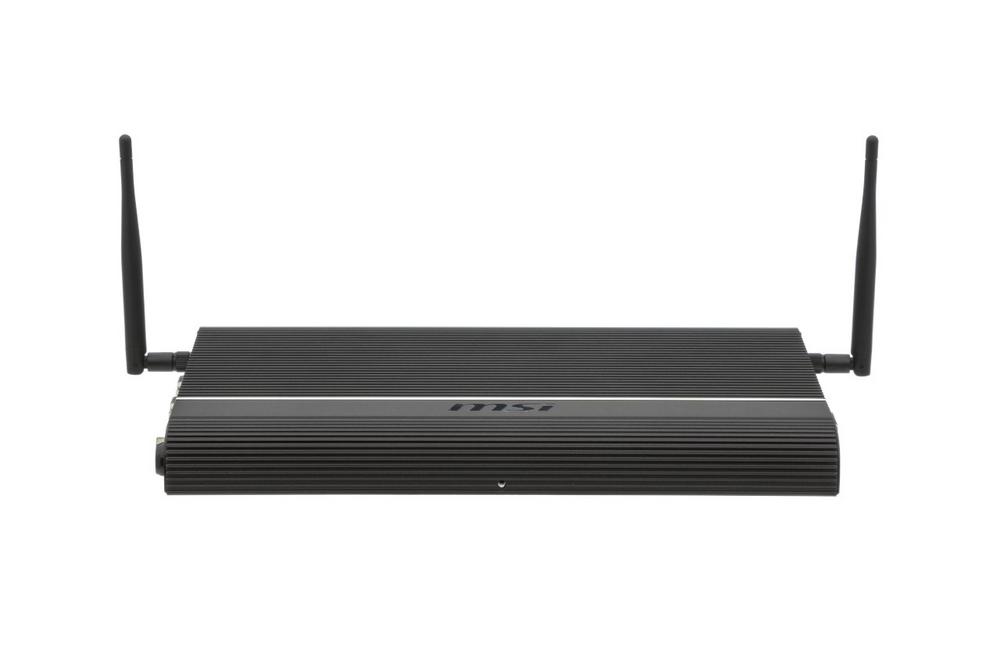

Our new WINDBOX III EVO relies on proven, extremely robust housings of the predecessor model and has an identical weight. Customers of the successful predecessor model can therefore easily integrate this new Embedded-PC into existing systems and continue to use existing mounting systems thanks to the standard-compliant VESA mountings. With a height of only 30 millimeters, attaching to surfaces – like behind monitors, control systems or even below tables – is possible in a very short time. Within a few minutes, all products of the WINDBOX III EVO are ready for use and can be exchanged for older models.
Performance for high demands
In the metal housing of the WINDBOX III EVO systems is an Intel Core i5 processor of the seventh generation based on Kabylake, which operates at up to 3.1 GHz and is supported by a maximum of 32 gigabytes of RAM. This allows extensive multitasking as well as the focus on individual applications that can fully exploit the performance of the Intel CPU. The icing on the cake and the signature of the WINDBOX series is the passive cooling system – making the Mini-PC absolutely noiseless and suitable for use in very quiet environments.
Your partner for challenging conditions
With the experience of MSI IPC and spo-comm, all our customers have a device that can operate in the extended temperature range of -10 ° C to 50 ° C without any restrictions. The high quality components guarantee, even under these conditions, that the use of 24 hours a day, 7 days a week is easily possible. Since the housing is completely closed, neither dirt nor the finest dust particles can reach the interior. This significantly reduces the failure rate and maintenance costs of all installations that rely on the WINDBOX III EVO. Even for smaller budgets, these products are therefore an intelligent, financially responsible choice.
Multi-Monitoring and up to 2x 4K@60Hz
All customers with high demands on Embedded-PCs from the digital signage sector benefit to a large extent from the numerous outputs for video content: One DVI and two DisplayPort interfaces guarantee that every configuration of the WINDBOX III EVO can monitor up to three monitors at the same time and therefore control the same or different content. The system’s high processing power also ensures that 4K content is displayed without delays or errors, so replacing 1080p as the standard in the digital signage space can immediately begin with the purchase of this Mini-PC. Since there will not be a higher video standard in the foreseeable future, the WINDBOX III EVO is a product that can boast its strengths in the coming years as well.
Individual and flexible
Everyone who is interested can now adapt the new product of the WINDBOX III series to their own needs under www.spo-comm.de. The flexibility of the WINDBOX III EVO ensures that this Mini-PC can easily work with existing configurations. To establish network connections or establish other wireless data transfers, the device is equipped with two network ports (2 Gigabit LAN) and optional WLAN and Bluetooth. Six USB connections, four of them according to the current 3.0 standard, allow the connection of numerous peripheral devices or external storage media. Simple, fast and efficient, the WINDBOX III EVO can be adapted to any application.
Microsoft and Intel no more supporting Windows 7
It should be noted that Intel and Microsoft officially no longer provide driver support for Kabylake processors running Windows 7. Thus, customers of spo-comm will in future only receive support based on Windows 10.
From now on, every configuration of the WINDBOX III EVO is directly available from stock via spo-comm.de. spo-comm and MSI IPC are looking forward to convincing other partners and customers of the quality of these excellent mini-PCs and to continue to develop tailor-made high-performance solutions in the future.
Highlights and technical data at a glance:
- CPU: Intel® Core i5-7200U (2 x 2.5 GHz, up to 3.10 GHz)
- Graphics: Intel® HD620 GPU
- Chipset: Intel® Kabylake
- Dimensions (W x H x D): 300 x 30 x 196 mm
- Fanless cooling
- RAM: up to 32 GB
- Robust metal housing
- Ambient conditions -10 ° C to 50 ° C with 10 ~ 90% of non-condensing moisture
- 2 x Gigabit LAN
- 1 x DVI-I (VGA via adapter)
- 2 x DisplayPort
- 2 x COM
- 2 x USB 2.0
- 4 x USB 3.0
- Wi-Fi and Bluetooth 4.0
- 2 x audio
- 1 x SPDIF
spo-comm offers Mini-PC solutions for industry and trade in Germany and Europe with special expertise for digital signage. The company was founded in 2003 by its CEO is Michael Sporrer. The Mini-PC specialist offers a wide range portfolio from hardware, software and services up to complete supply chain management – always with a perfect fit. Thanks to the great customer support and technical teams spo-comm carefully meets the customer’s requirements. spo-comm has a dense network of hardware partners, and is is one of the most important of MSI IPC partners in Europe.
