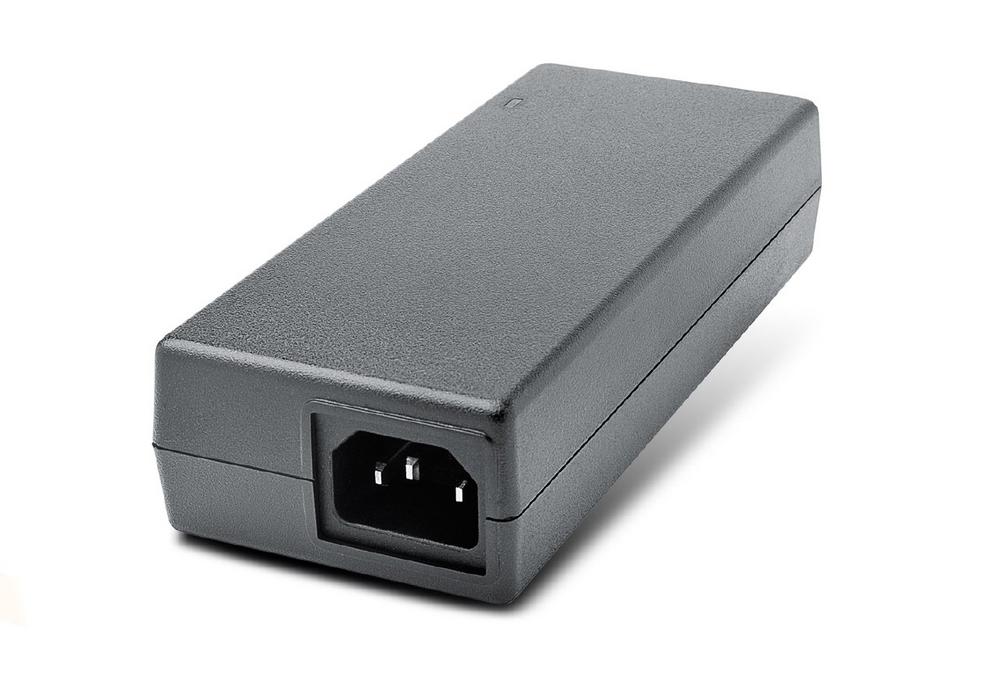

The external AC/DC power supply with wide-range input of 90 to 264 VAC and active PFC also impresses with its high reliability (MTBF >869,000 hours), which is ensured by the exclusive configuration with +105°C premium electrolytic capacitors and a robust circuit design. Thus, the BET-0900-T is ideally suited for 24/7 continuous operation in the wide operating temperature range of -20°C to + 60°C. Three models are available with accurately regulated DC output voltages of +12V, +19V or +24V. For additional reliability, the BET-0900-T has short circuit and overload protection with auto-restart, as well as over-voltage and over-temperature protection. The isolation voltage between input/output is 4242 VDC. The protective conductor PE (primary) is connected to -Vout (secondary). No base load is required at the output so that the latest generation Intel® Core™mainboards with special power saving modes can be supplied safely. In addition to the current energy efficiency standards, the BET-0900-T has the EN/UL60950-1 safety approvals.
The standard built-in DC hollow connector on the power supply output can be customized for specfic applications by special connectors, such as locking dc plugs. Optional accessories are available from Bicker Elektronik: The Cling Pad KP-01 for quick and easy mounting of the external AC/DC power supply on smooth surfaces, a practical adapter PSZ-1008 (DC jack to screw terminals), the three-pin power cable Y1-132 with IEC-60320-C13 and the DC extension cable CB-TRG-EXT. In addition to the long-term availability of at least 5 years Bicker Elektronik grants a warranty of 3 years on the external AC/DC power supply BET-0900T.
All product features at a glance
- 90 Watt external AC/DC power supply for industrial applications
- Only equipped with 105°C premium electrolytic capacitors
- Very high reliability
- Energy Efficiency Level VI / Tier 2
- High efficiency
- Low standby consumption <0.15 W
- Wide temperature range -20…+60°C
- International approvals
- Suitable for 24/7 continuous operation
- Long-term availability at least 5 years
- 3 years warranty
Direktlink to product BET-0900-T:
Founded in 1994, Bicker Elektronik GmbH develops, manufactures and distributes power supplies, UPS systems and system components. The company is TÜV certified according to ISO 9001: 2015 and focuses with its product portfolio on high-quality power solutions and system components for the areas of industrial automation, medical technology, transport, maritime, communication and information systems as well as infotainment and gaming. The PowerSolutions division includes not only power supplies in the classic sense, but also encapsulated power modules, DC/DC converters, DIN rail power supplies and uninterruptible power supplies (UPS) with DC or AC input. The power range of these products is between 3 W and 10,000 W. The product portfolio of Bicker Elektronik is rounded off by suitable industrial mainboards of the manufacturers Fujitsu, ASRock, Perfectron and Avalue as part of the Power+Board program. In addition to the documented lab tests of the power supply + mainboard bundles, the Power+Board services also include personal on-site consulting, product presentation, design-in support, tailor-made system solutions for industrial and medical technology, training and competent technical support. In addition, Bicker Elektronik offers suitable processors, memory, expansion cards and mass storage in industrial quality. This means that all core components can be conveniently accessed from a single source.
