The ODU-MAC® RAPID is characterized by extremely easy assembly and servicing
The novel housing design ensures easy assembly for its users. Thanks to the half-shell principle, 50% time savings are achieved during assembly, servicing, and also during any subsequent adjustments.
The housing’s simple design means it can be assembled and packaged with little effort. Optional lattice plates can be used to bundle individual strands. The cable outlet can be individually adapted to the respective cable and hose packages via a simple cut from a knife – no special tools are needed. The new housing also complies with the IP4X protection class.
This innovative housing successfully overcomes challenges such as high contact density, optional flush mounting of the receptacle, as well as extreme versatility to cope with sudden changes to user requirements. Special protective caps for both sides of the housing complete the new line up.

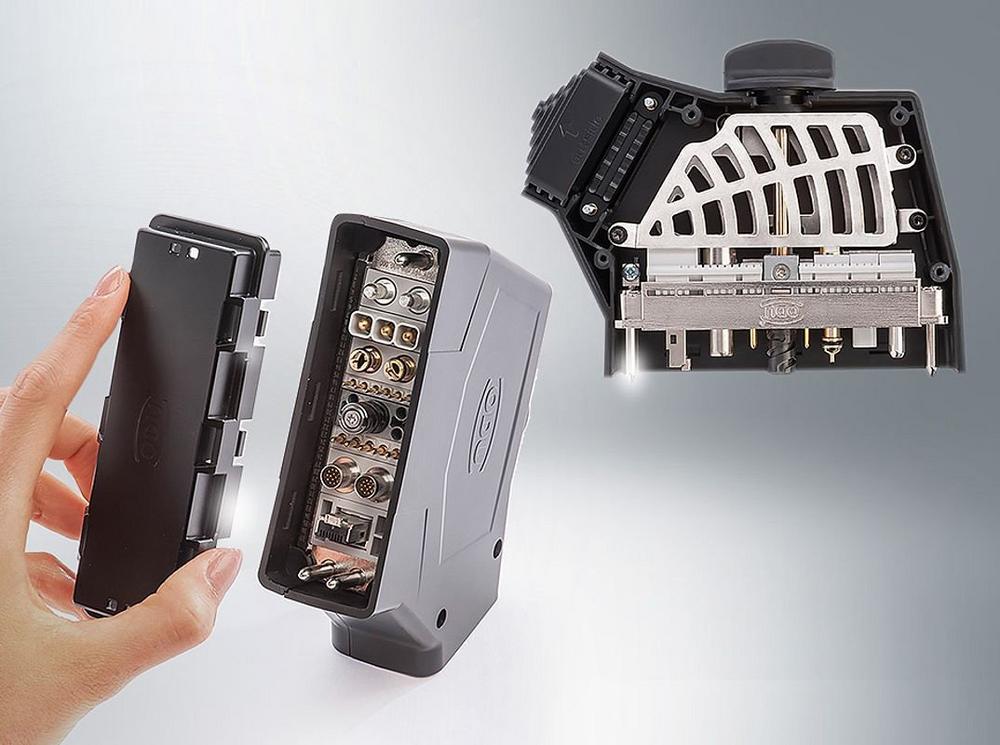

The ODU-MAC® RAPID features a two-piece plastic housing, which is available in size 4 and with ODU’s proven spindle locking system for both the White and Blue-Line. The spindle locking is designed for at least 30,000 locking cycles, and this number can be easily increased simply by replacing the spindle screw. Find out more at https://www.odu-connectors.com/…
ODU is one of the world’s leading suppliers of connector systems, employing some 1,900 people around the world. Aside from its company headquarters in Mühldorf am Inn (Germany), the ODU Group also has production sites in Sibiu (Romania), Camarillo (USA), Shanghai (China) and Tijuana (Mexico). ODU covers all relevant areas of expertise and key technologies around design and development, machine tool and special machine construction, injection, stamping, turning, surface technology, assembly and cable assembly. The ODU group sells its products globally through an international distribution network including eight subsidiaries in Denmark, England, France, Italy, Sweden, the US, China and Japan, along with numerous worldwide sales partners. ODU connectors ensure the reliable transmission of power, signals, data and media in a variety of demanding applications – in future-oriented growth markets such as medical technology, military and security, eMobility and energy as well as in established sectors such as test and measurement, automotive and industrial electronics.
