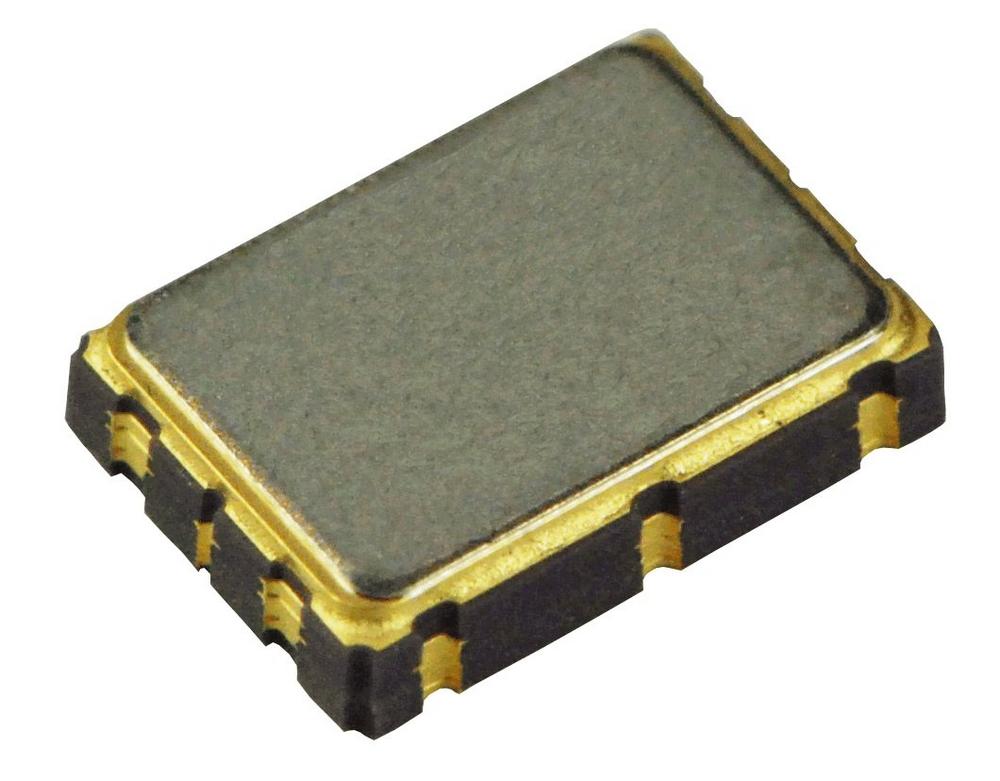

Epson’s SG-8506 brings the convenience of programmable oscillator technology to high-speed interfaces. Using a Σ-Δ fractional-n PLL, Epson’s SG-8506 achieves very low jitter of 0.3 psRMS (12 kHz to 20 MHz). The initial setup frequency is set using OTP (one-time programming). The user can override the startup frequency via the I2C interface.
To support rapid product development, Epson’s SG-8506 oscillators can be ordered with 24-hour turnaround from distributors or you can program your own lab using Epson’s SG-Writer II and blanks. Easy-to-use software can be downloaded from Epson’s website.
- Low Jitter: 0.3 psRMS
- Fast-Turn Prototypes
- Differential output: LVPECL
- Temperature range: -40 °C to +85 °C
- Power Consumption: <90 mA maximum
- Wide Frequency Range: 50 MHz – 800 MHz
- Output Enable (OE) or Standby (ST)
