- Four 10/100/1000BASE-T Ethernet channels
- Intel i82580 Server chipset with support for 8 virtual machines
- Full-duplex or half-duplex
- X-coded M12 connectors
- 500 V insulation voltage
- -40°C to +85°C operating temperature
- Based on PICMG CPCI-S.0 CompactPCI Serial
When You Need More – Fast Communication via M12-X

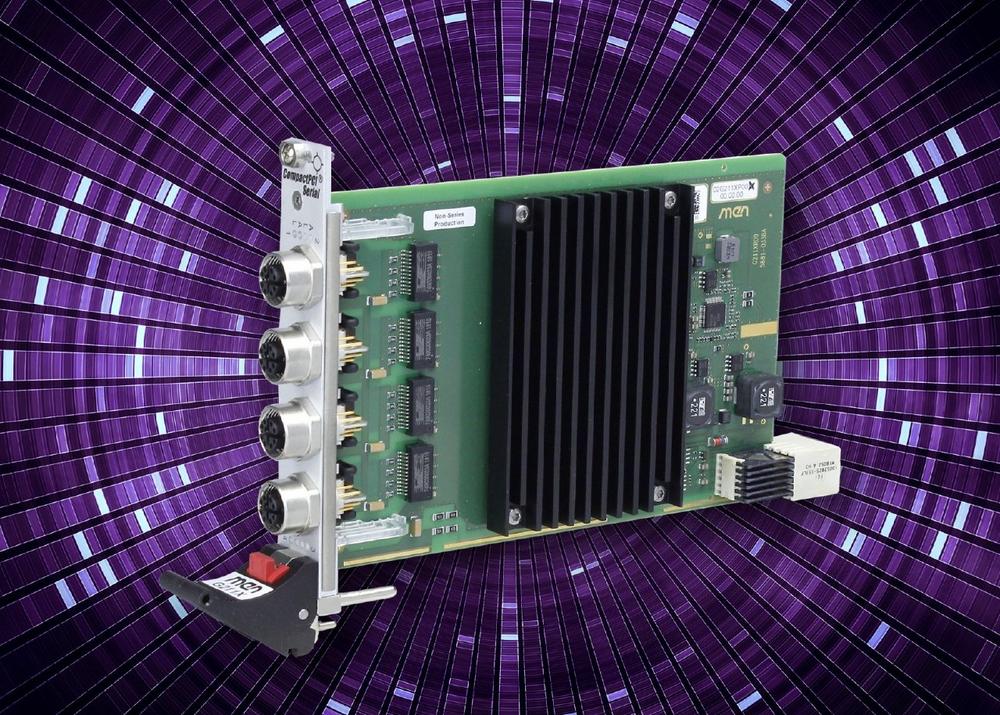

The G211X is a new quad Ethernet card based on CompactPCI Serial. The four Gigabit Ethernet interfaces on the front panel are accessible via robust, X-coded M12 connectors.
All four interfaces are controlled by an Ethernet controller connected to the backplane via an x4 PCI Express connection. Each interface also supports a data transmission rate of 1 Gbit/s – even if all four channels are used simultaneously. For better control, two LEDs each indicate the connection and activity status of the interfaces.
Perfect for Mobile Applications
The G211X is designed for an extended operating temperature and – also thanks to the extremely robust M12-X connectors – prepared for use in harsh and mobile environments.
MEN press documents are archived on this web site for historical purposes. Information in the documents is accurate at the time of release. However, product specifications and other specific information may change over time. Some information about product pricing and availability may be limited to specific geographic areas and may differ in other areas. Information as stated in the document may or may not be in effect after the date of the release.In addition, press documents may contain statements that are forward-looking. These statements are based on current expectations as of the date of a particular release. Actual results may differ materially from those projected because of a number of risks and uncertainties.
