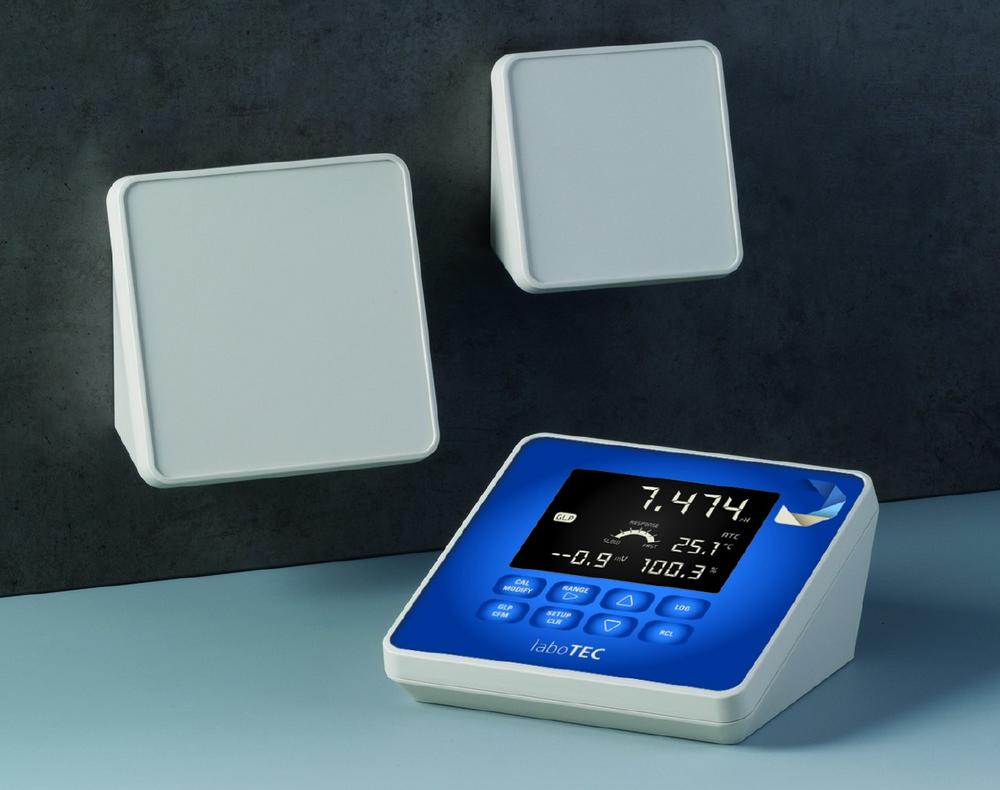

The enclosures have an inclination angle of 20° which considered ergonomically ideal for operating terminals and for reading off data.
PROTEC can be ordered from stock in 3 sizes with 140 x 140 x 76 mm, 180 x 180 x 92 mm, 220 x 220 x 108 mm (W x D x H) and is also available in 3 different versions:
- Version I
With a deep recessed interface area at the rear of the enclosure for the installation and protection of connectors, interfaces, switches and cables.
- Version II
As version I, but also with a snap-on cover for flush covering of the recessed interface area.
- Version III
As version I, but with a deep cover for the recessed interface area which is fitted by screws. The deep cover provides additional internal space for the electronics, cabling and connections.
A recessed operating area for integrating membrane keyboards, operating elements and touch systems has been provided in the square top cover. The top cover is screwed to the bottom part at the back with stainless steel Torx screws, and the entire screwed connection is thus hidden from view. The range of accessories for the enclosure series includes matching sheet aluminium holders, which allows hidden, secure wall mounting.
As can be expected from OKW, the PROTEC enclosures can also be modified according to the individual requirements of the customer, for example with printing, mechanical machining for interfaces/displays, painting, EMC coating on the inner side of the enclosure and much more.
The PROTEC-series is made of high-quality V0 material in off-white (RAL 9002). The electronics compartment can be sealed up to protection class IP 65 by means of an accessory sealing kit – this is particularly useful for tough applications, for example in the smart factory / IIoT, central control units, surveillance systems and access and security controls in industrial environments or outdoors.
However, the PROTEC can also be used in many other sectors:
for data acquisition systems, data systems engineering, measuring and control engineering as well as medical technology and in health care.
