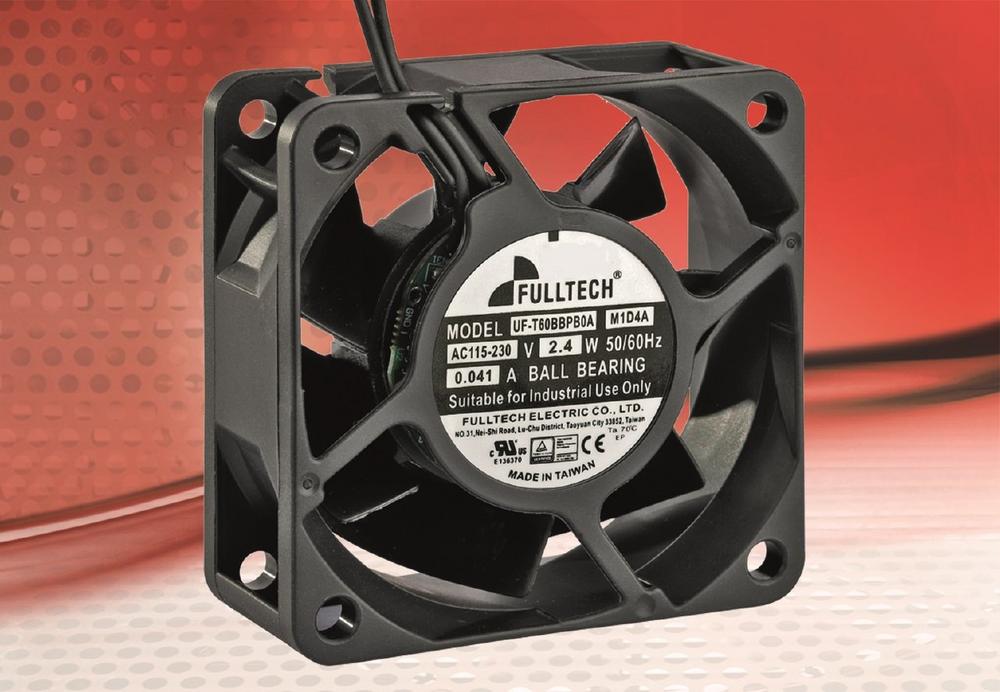

The new EC fan surpasses its predecessors by far. With an edge length of only 60 mm it generates virtually double the airflow whilst simultaneously only consuming half as much power. Despite the mounting depth that has been reduced by 5 mm, the new EC fan provides three times as much pressure in the operating area compared to the standard AC model. This is made possible by a modern motor concept and redesigned rotor blades: A highly effi-cient, electronically commutated DC motor replaces the squirrel cage rotors that have been used so far. The motor is operated with DC voltage that is provided by an integrated AC/DC converter.
The life expectancy (L10) is a major issue and is approx. 50.000 hours at 40°C. The operating temperature is in the wide range from -20 to 70°C.
The EC fan UFT60BBP is suitable for all power supplies worldwide. Its speed therefore does not depend on the supply voltage and frequency.
SEPA EUROPE offers EC fans with up to 75% reduced power consumption in the dimen-sions 60×60 mm up to 280 mm and thus enables the user to fulfil the directives of the Euro-pean Parliament with a simple and affordable product. An additional advantage of this fan is its
contribution to reducing CO2 emissions.
SEPA EUROPE has more than 25 years experience in electronic cooling. We aim at convincing our customers with our extensive product range. This not only includes axial and radial fans but also chip coolers and a wide range of accessories, e.g. finger guards, AC connection cables and dust-proof grids. Our passion for fans is reflected in the development of special customized solutions ranging from ready-for connection, assembled fans with customer-specific lead lengths and connectors, picked goods in sales-oriented packaging to complete customer-specific fans. We offer tailor-made solutions to meet your exact requirements, e.g. fan/heat sink combinations with heat pipes or Peltier elements. We address new challenges and always find the appropriate solution.
