Sesotec metal separators optimise injection moulding process at the production of syringes, adapters, tubes

One of the world’s leading medical technology companies produces and sells an extensive range of medical supplies, laboratory and diagnostic equipment for health care facilities, life science institutes, and clinical laboratories. In the field of injection and infusion technology the company is regarded as an innovation leader.

The company attaches particular importance to highest quality. Development, production, and delivery of products and services are subject to a continuous process of improvement. For this purpose processes are analysed to determine where and how efficiency and effectiveness can be increased.

Protection of injection moulding tools and quality assurance of plastic products


For the production of plastic parts by way of injection moulding the medical technology company uses both new granulate and regrind, which may both be contaminated with foreign bodies such as metal particles. In the past this often complicated the injection moulding process because such metal particles resulted in clogging of individual cavities in injection moulding tools, and tools frequently had to be cleaned. This caused expensive production downtimes of injection moulding machines, quality defects of plastic products, and a reduced output.

Looking for a solution for these production problems the company came across Sesotec metal separators. Using metal separators is the most reliable method for the removal of metallic particles and thus for the protection of injection moulding machines and for quality assurance of plastic products.

PROTECTOR reliably removes metallic contaminants from the processing material

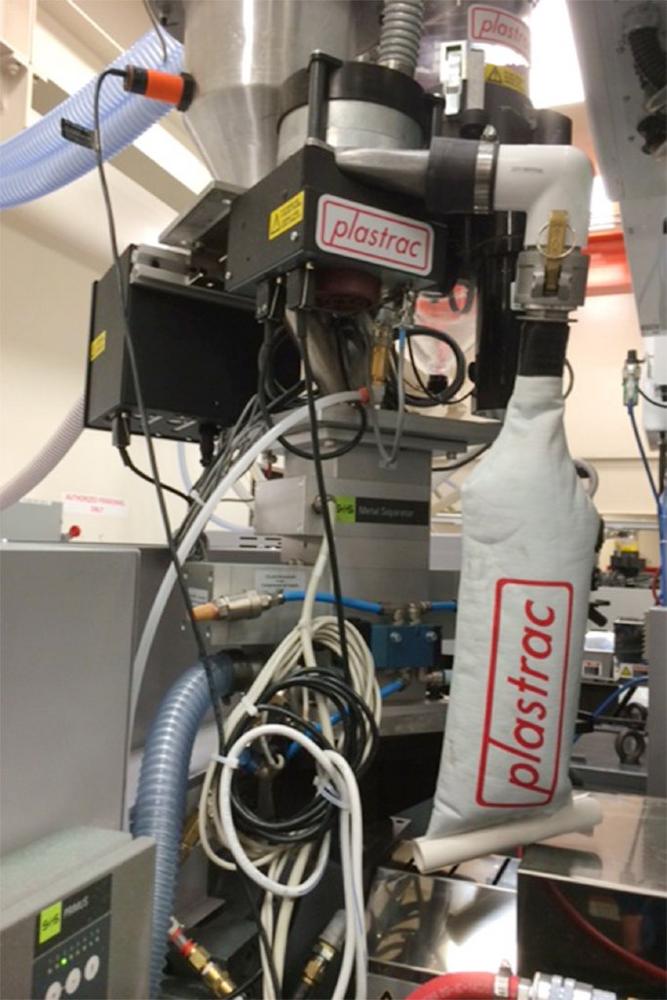

After thorough tests the medical technology company now uses Sesotec PROTECTOR metal separators for the inspection and cleaning of granulate (new material and regrind). Metal separators of the PROTECTOR series are installed directly above the material inlet of injection

moulding machines, where they reliably remove metallic contaminations from the slowly descending material column. Apart from outstanding properties such as high sensitivity and space-saving, compact design, the metal separators of the PROTECTOR series especially are characterised by the "Quick-Valve" reject unit.

When a metal particle is detected a pneumatically controlled piston in this reject unit moves into its reject position, and the rejected material is completely sucked off into a collecting container by means of a Venturi nozzle. The piston then moves back to its pass-through position again. Only a minimum of good material is lost in this process, and clogging is impossible.

The medical technology company is highly satisfied with the Sesotec PROTECTOR metal separators: "Since the installation of these metal separators the operating time of our injection moulding machines has considerably improved, because disturbing metal contaminations are no longer an issue in the production process.“

Über die Sesotec GmbH

Sesotec is one of the leading manufacturers of machines and systems for contaminant detection and material sorting. Product sales primarily focus on the food, plastics, chemical, pharmaceutical, and recycling industries. Sesotec’s global presence includes subsidiaries in Singapore, China, USA, Italy, India, Canada and Thailand, and more than 60 partners all over the world. The Sesotec group presently has 570 employees.
