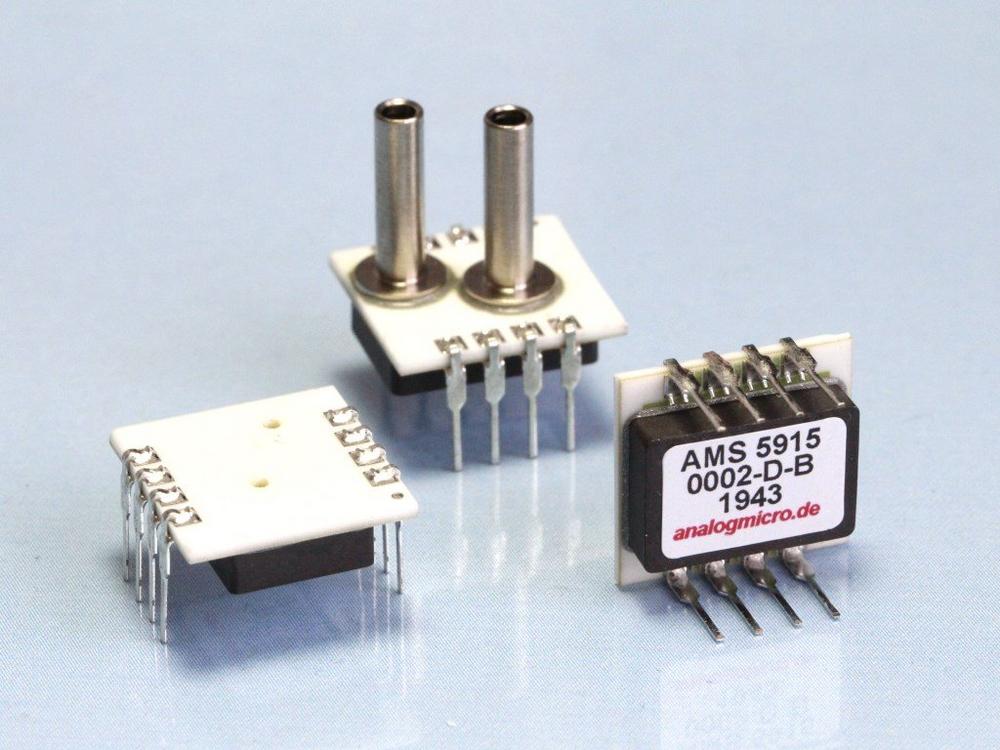

The board-mount AMS 5915-0002-D-B is digitally calibrated, linearized and extensively temperature compensated in a wide operating temperature range of -25 … 85 °C. It features a resolution of 14 bit and is ideal for system integration with its supply voltage of 3.3 V and I2C interface. AMS 5915-0002-D-B reaches a total error band (TEB) < 2 %FSO over its complete operating temperature range without additional zero-point adjustment at system level. Furthermore the combination of a high quality MEMS-element with a modern mixed-signal ASIC on a ceramic substrate guarantees excellent long term stability. With a reaction time of typically 0.5 ms the sensor is also suitable for fast measurements. AMS 5915-0002-D-B is available in two package variants: in a ceramic DIL package with vertical metal tubes for hose connection or without tubes for O-ring sealing (manifold mount).
For easy evaluation of AMS 5915-0002-D-B Analog Microelectronics offers a USB starter kit, which can also be used to program an individual I2C address. For operation with an Arduino adapter PCBs for Arduino Uno and Nano are available as well as an example code for Arduino’s integrated development environment.
Analog Microelectronics GmbH, Mainz develops and produces high quality products for sensing and signal conditioning. As a specialist for pressure sensors and integrated circuits we have delivered innovative and reliable products to customers in the automotive, medical, industrial, HVAC and automation industries for more than 25 years.
