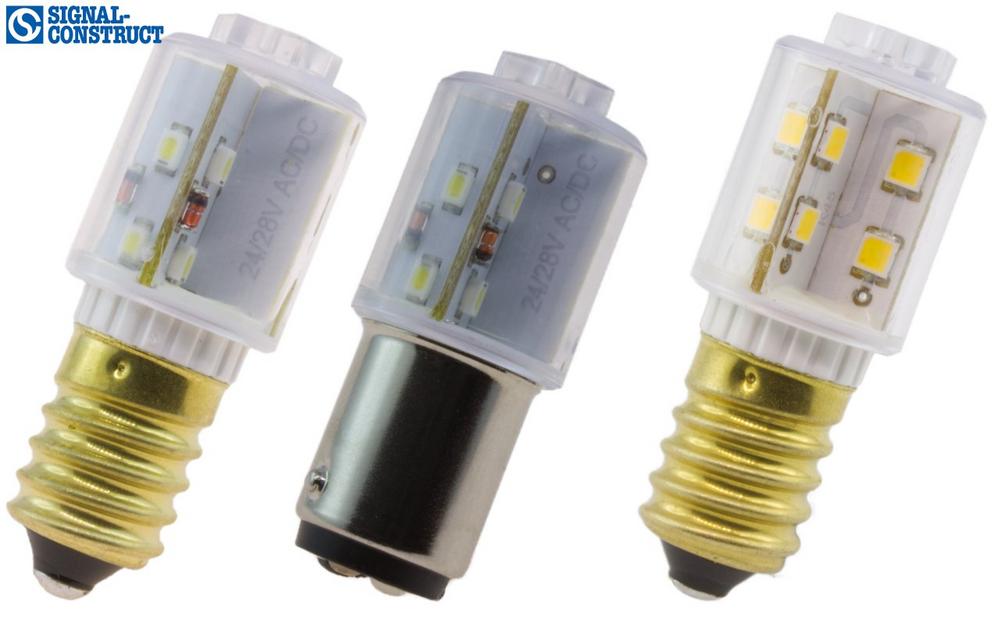

The proven Sistar®-II all-round LED lamps with significantly improved brightness

By switching to the latest generation of middle-power LEDs, we were able to significantly improve our tried and tested all-round lamps in the Sistar®-II series.

The advantages are significantly improved brightness, more homogeneous illumination due to the larger beam angle of the LEDs and an expanded selection of color temperatures from 2,200 to 6,500K for white and warm white.


The gain in brightness compared to the previous series is between 15% and 500% (yellow) depending on the color and voltage version.

At the same time, this gave the opportunity to reduce the number of variants. The new lamps for 12 and 24 V are basically designed as 8-chip types, from 60 V as 12-chip types. The Sistar®-II series is particularly suitable for use in signal towers for status display on all types of machines.

The lamp housings on the top are equipped with a combined hexagon (AF 10 mm) and cross recess for screwdrivers for easy installation even in tight spaces or in narrow installation shafts.

As before, all lamps are supplied as full AC / DC versions and with BA15d, BA15s and E14 bases. Special voltages on request.

Our MBRE1416H emergency lamp is still available as a 16-chip version for 230 or 130 V AC / DC. This LED lamp offers a particularly homogeneous light distribution over 360 ° and is therefore primarily designed as an economical and long-lasting illuminant for emergency, stair and path lighting.

In addition to the well-known durability and reliability, they have the property of shining from approx. 60V DC or 75V AC. The 230V version operates to voltage as low as 180V DC with hardly any reduced brightness, and is therefore particularly suitable for emergency lighting with lead-acid batteries. By converting to the Sistar®-II, the requirements in terms of brightness and battery life can be restored in many cases and there is no need to replace the tired batteries.

You can find these lamps and many other LED innovations in our catalogue LED Power on Lamp Sockets, see the link opposite.

You can also use the link below to our website, where you will find further technical data and links to download the data sheets.

Über die Signal-Construct elektro-optische Anzeigen und Systeme GmbH

Signal-Construct has been an innovative owner-managed family company with a focus on the development and manufacture of opto-electronic parts and components for more than 40 years.
The wide range of products offers high-quality, customer-oriented and sustainable solutions for a wide range of applications, whereby a profound know-how is available due to a deliberately high level of vertical integration.
The focus is on illuminations for controls and indicator lights in the industrial and aviation sector, reading lights for rail vehicles as spots or with flexible metal tubing, LED spots for accent lighting, and status indicators for front and PCB installation.
The production program is supplemented by standard and customer-specific light guide components and an area of LED processing, in which the processing of THT-Visible as well as IR and photodiodes or the reworking into SMT-processable components is possible.
