Robust power supply design for worldwide use
For international use, the AC/DC switching power supplies of the BEO-1400M series have a wide-range input (90 to 264 VAC at 47 to 63 Hz) with active PFC (power factor correction). The robust and high-quality power supplies are designed for long-term 24/7 operation and operate in a wide temperature range from -20 °C to +70 °C. The maximum operating altitude is 5000 m. The excellent quality and reliability are based on high-end industrial grade components. This is also reflected in a high MTBF. In addition, Japanese branded capacitors of +105 °C quality class significantly extend the PSU lifetime. The high energy density of the 2×4" power supplies also favors the particularly space-saving installation in compact and performant applications.
High energy efficiency and contact cooling
The optimized converter topology of the BEO-1400M series is characterized by a high efficiency of up to 93 % across the full performance range and consumes less than 0.21 Watt in standby mode. For effective contact cooling, a suitable thermal pad (gap filler pad) and a Mylar film with cutout for contact surface are included in the scope of delivery. The thermally conductive gap filler bridges gaps and air voids between the power components on the circuit board underside and the heat sink or metal chassis of the application. This ensures optimal passive cooling and the protection of the components against overheating. Due to the very good heat management, heating of the switching power supply is reduced to a minimum, making fanless and maintenance-free systems possible.
International safety approvals for medical technology
The new switching power supplies BEO-1412M and BEO-1424M have the medical safety approvals IEC/EN/UL 60601-1 (Edition 3.1) and meet the current EMC standard IEC 60601-1-2: 2014 (Edition 4.0) with regard to electromagnetic compatibility of medical electrical devices. With a high insulation voltage of 4000 VAC input/output, the power supplies meet the medical safety standard 2xMOPP for patient contact (Means Of Patient Protection). The leakage current is less than 0.1 mA.
New safety standard IEC/EN/UL 62368-1 for industrial applications
As of December 20, 2020, the new safety standard based on IEC 62368-1 will replace existing standards 60950-1 and 60065 worldwide. The new BEO-1400M series has already been certified to IEC/EN/UL 62368-1 and also complies with EMC standard EN 55032: 2015 Class B. This means that international customers and system developers can be sure that the new power supply series will cover all relevant standards in a future-proof manner. Combined with the three-year device warranty and long-term availability of at least 5 years, long-term applications in particular benefit from optimal investment protection.
Original accessories from Bicker Elektronik
The 3-pin AC input line CB-105-3-600 or the 2-pin AC input line X1-054 are available as optional accessories for input-side mains connection, and the 4-pin DC output line CB-BEO-0600M on the output side – each made in AWG18 with a length of 600 mm and open ends.
Extensive value-added services
In addition to the high product quality, excellent service & support from Germany as well as extensive know-how in development offer the decisive added value for the customers of Bicker Elektronik. The extensive warehousing at the headquarters in Donauwoerth/Germany also guarantees fast and on-time delivery. With personal design-in advice, many years of experience and flexibility in implementing individual requirements, Bicker Elektronik provides its customers with the right solution in a timely manner. Upon request, the R&D engineers at Bicker Elektronik can also implement customer-specific special solutions. The range of services also includes extensive laboratory and measurement services for complete customer systems as well as performance profile analyzes for the exact dimensioning of power solutions.

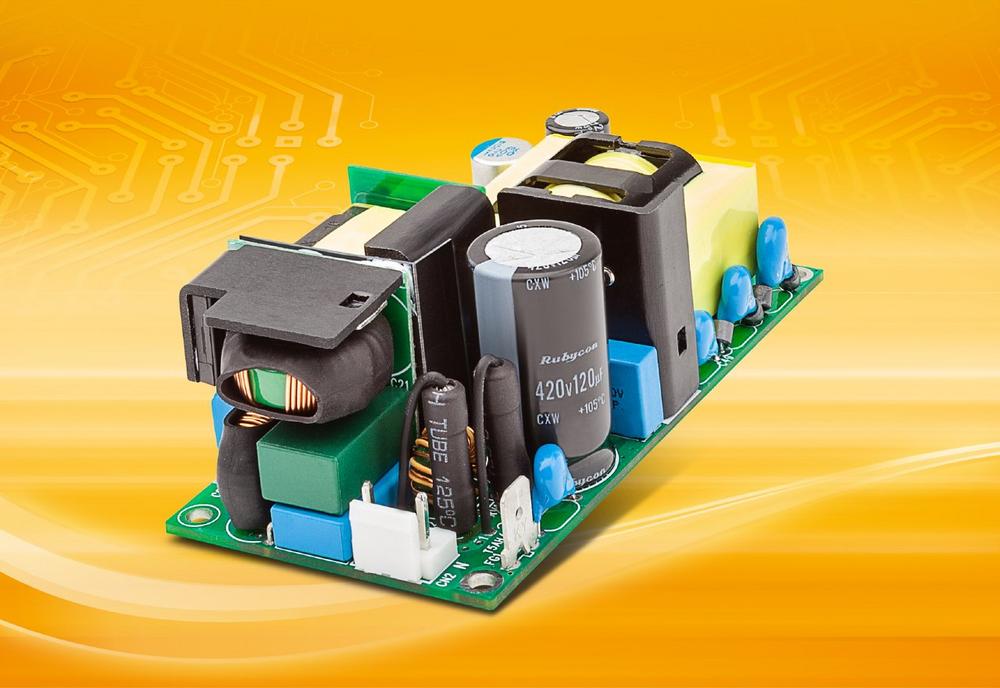

Bicker BEO-1412M / BEO-1424M
All features at a glance
- AC/DC switching power supplies for industrial and medical applications
- Available with 12V and 24V DC output
- Very compact 2×4 "design (101.6 x 50.8 x 32 mm)
- 140 watts of continuous fanless power (200 watts ventilated)
- Thermal gap pad for contact cooling included
- High efficiency up to 93%
- Low standby consumption <0.21 W
- Wide temperature range -20…+70 °C
- operating altitude 5000 m
- International safety standards: IEC / EN / UL 60601-1 (Ed.3.1) 2xMOPP, IEC / EN / UL62368-1
- EMC IEC60601-1-2: 2014 (Ed.4.0)
- EMC EN 55032: 2015 Class B
- High reliability (MTBF)
- Suitable for 24/7 continuous operation
- Long-term availability at least 5 years
- 3 year warranty
Direct link BEO-1412M: https://www.bicker.de/…
Direct link BEO-1424M: https://www.bicker.de/…
Based in Donauwoerth/Germany, Bicker Elektronik GmbH has been developing, manufacturing and selling highly reliable power supply solutions (3 to 24,000 watts), UPS systems and system components for over 25 years. These include industrial, IPC and medical power supplies, encapsulated modules, DIN rail power supplies, DC-DC converters and modular DC UPS systems with long-life energy storage devices (Supercaps, LiFePO4, Li-Ion or lead batteries) for uninterruptible power supply. The portfolio is rounded off by matching industrial mainboards from manufacturers AAEON, ASRock, ASUS IOT, Avalue, Kontron and Perfectron. The perfectly matching "Power+Board" bundles save valuable time and money in system development. In addition, Bicker Elektronik offers suitable processors and storage solutions in industrial quality. The high product quality, excellent service and extensive know-how in development offer decisive added value for the international customers of Bicker Elektronik. With personal design-in consulting, many years of experience and flexibility in the implementation of individual requirements, Bicker Elektronik provides its customers with the right tailor-made solution in a timely manner. The extensive warehousing at the headquarters in Donauwoerth also guarantees a fast and timely delivery. The company is TÜV certified according to ISO 9001: 2015. The target markets of Bicker Elektronik are Industry 4.0 / IIoT, automation technology, robotics, medical and laboratory technology, measurement and control technology, transportation, maritime, energy, communication and information systems, gaming, POS/POI, digital signage, safety and building technology.
