The new Han® Shielded power module has three power contacts and one PE contact for connecting typical three-phase loads. It also has two signal contacts for temperature monitoring, brakes, etc., as well as a large shield that allows EMC-compliant connection of the cable shielding directly to the module. It represents an alternative to the hardwiring of shielded power lines while also allowing such connections to be made alongside other modules in the Han-Modular® series in one hood or housing.
HARTING has tested the new module in practical applications in the EMC laboratory: the EMC characteristics of the shield in the Han® Shielded power module are entirely suitable for typical drive applications such as frequency-controlled three-phase motors or other loads. This makes it possible to plug in shielded power lines and it is easy to use and allows direct connection of the shield to the module. As a result, installation times for machines and systems are shorter, whether in a factory or at the end customer’s site.

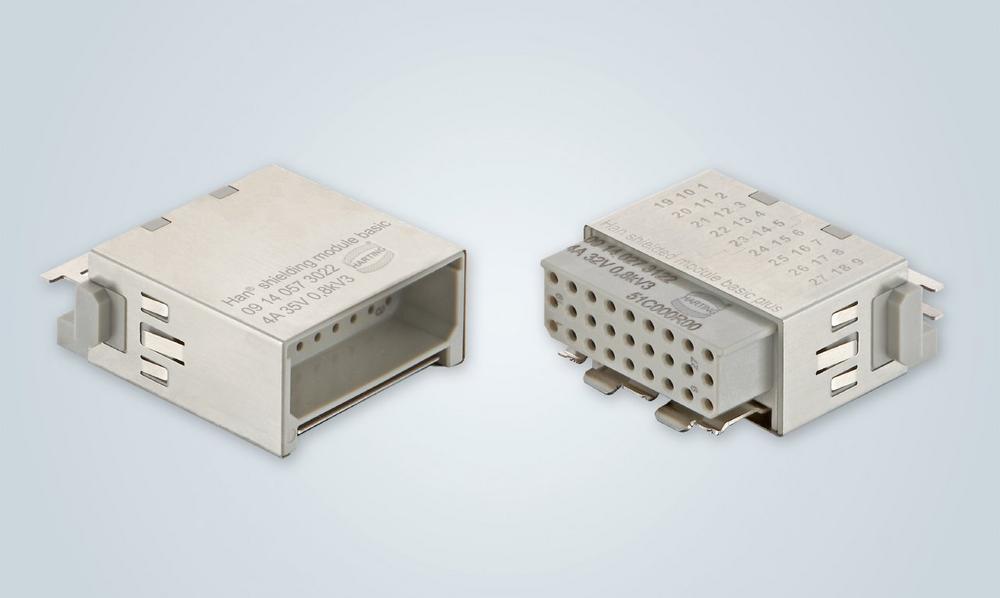

The series will also have an EMC-protected module for signal transmission. With a large shield and additional 360° shielding plate, the module not only offers excellent shielding, but also ensures a high transmission volume in minimal space. 27 shielded D-Sub contacts up to 4A / 32V can be plugged in. Under the name Han® Shielded Module Basic, this new product will be a simple and cost-effective way for users in the machinery and robotics sectors (for example) to integrate shielded transmission into modular connectors.
The HARTING Technology Group is one of the world’s leading providers of industrial connection technology for the three lifelines of Data, Signal and Power and has 14 production plants and 44 sales companies. Moreover, the company also produces retail checkout systems, electromagnetic actuators for automotive and industrial series use, charging equipment for electric vehicles, as well as hardware and software for customers and applications in automation technology, mechanical and plant engineering, robotics and transportation engineering. In the 2018/19 business year, some 5,300 employees generated sales of EUR 750 million. Founded on 1 September 1945, the company celebrates its 75th anniversary at many trade fairs and events.
