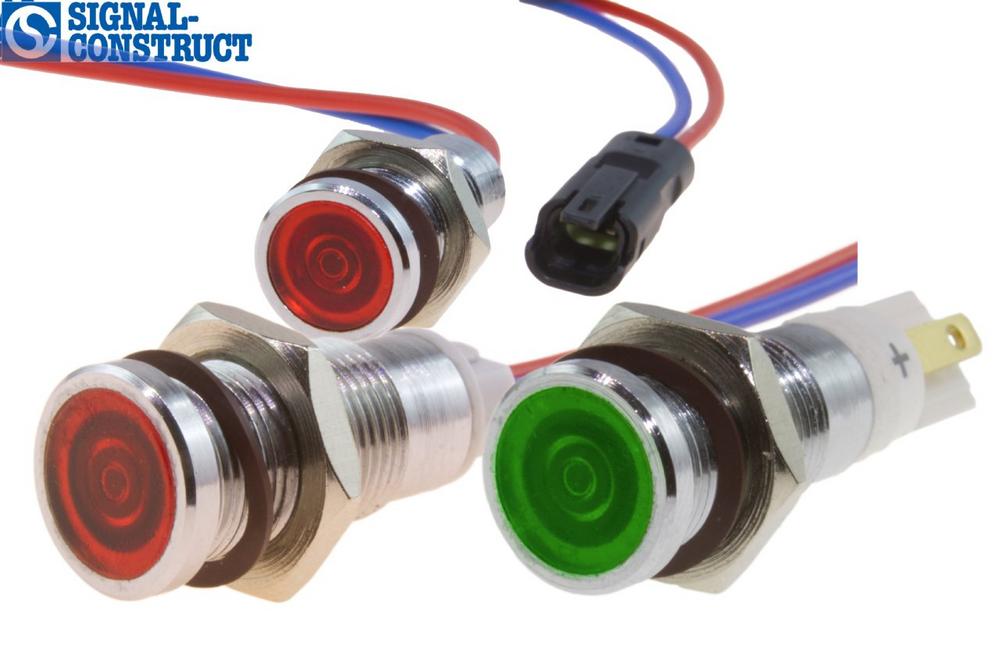

A robust metal housing with M10 thread and a head diameter of 12 mm optionally has a clear-transparent or coloured cover plate, made of PMMA. This means that the lamps also are largely resistant to aggressive media such as chemicals and cleaning agents.
Due to the ultra-bright LEDs and the insensitivity of the cover plates against UV and IR radiation, the series especially is suitable for outside use also.
The indicators are available for different supply voltages from 6 V up to 230 V, whereby an additional diode offers protection against reverse polarity and induction voltage surge.
Additionally, various connection configurations are available. The preferred type has tab terminals of size 2.8 x 0.8 mm. In addition various stranded wire designs with cross-sections from 0.22 to 0.56 mm² can be offered – also with connectors of different brands.
If the option "wires with connector" is chosen, the lamps are provided with an additional epoxy potting on the back.
Connected with the option "stranded wire connection", we also can realize indicators with 3-pole LEDs (2-/3-colour) and an RGB version with common anode.
Signal-Construct has been an innovative owner-managed family company with a focus on the development and manufacture of opto-electronic parts and components for more than 40 years.
The wide range of products offers high-quality, customer-oriented and sustainable solutions for a wide range of applications, whereby a profound know-how is available due to a deliberately high level of vertical integration.
The focus is on illuminations for controls and indicator lights in the industrial and aviation sector, reading lights for rail vehicles as spots or with flexible metal tubing, LED spots for accent lighting, and status indicators for front and PCB installation.
The production program is supplemented by standard and customer-specific light guide components and an area of LED processing, in which the processing of THT-Visible as well as IR and photodiodes or the reworking into SMT-processable components is possible.
