Area storage system for picking of door leaves

Spittal am Phyrn (Austria), where around 2,500 "DANA-doors" leafes the production plant of the Jeld- Group every day to make their way to their customers. This is already a considerable amount, and a glance at the available number of variants makes this figure all the more impressive.

This immense daily throughput is made feasible by the fully automated SYSTRAPLAN order picking warehouse. This allocates the already packed door panels to the corresponding orders just before loading onto the trucks. "The machine has now been running here in 3-shift operation since 2016, and downtimes must be avoided at this point at all costs, since almost every door that leaves our plant passes through the SYSTRAPLAN-area storage system," reports the technical manager of the door manufacturer, Alexander Holzer.

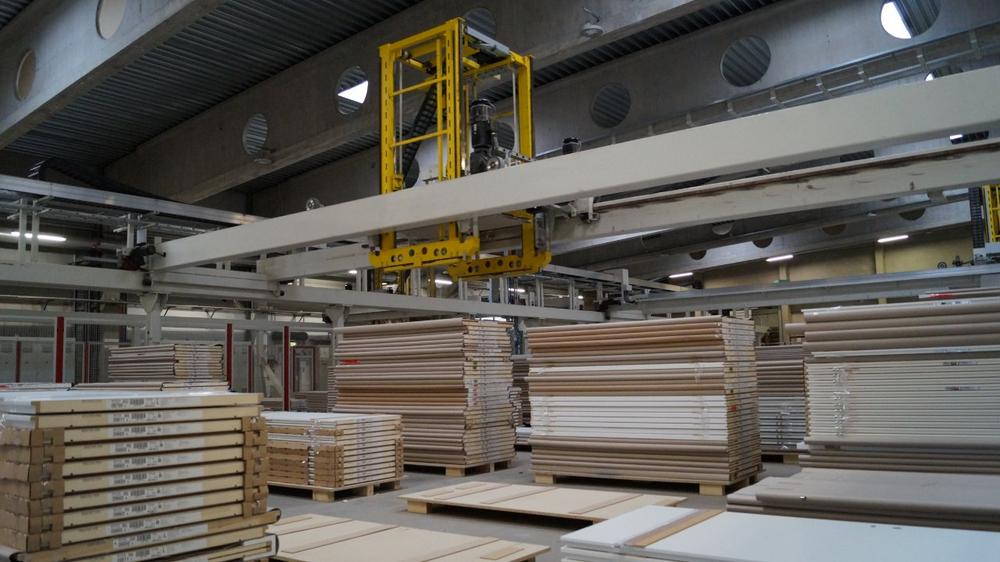

By means of a clamping frame adjustable to the respective length, the door leafes are clamped at the head end and thus can be separated effortlessly. Sometimes a combination of clamp and vacuum transport is also used.  The singling or resorting is necessary, because the upstream production lines produce in a cut-optimized way, and therefore the orders cannot be worked-off according to the customary picking orders. For this reason it is necessary that the doors coming from the production line are first singled again in the SYSTRAPLAN system and are then assigned to the respective customer picking order. Upon storing the system is supported by an additional scanner portal, which records all needed product information fully automatically via a barcode. Once the data has been recorded, they are made available to the higher ranking warehouse management, and storage and allocation via storage gantry (gantry 1) can begin. In the next area of the area storage, which comprises two bridge portals (portal 2.1 and portal 2.2) with single board and stack transport, priority is given to rearrangements and pre-picking.  This area also contains a section for "standard goods" for large customers with high purchase numbers. All sections are connected by various roller conveyors enabling the transfer to other sections and the discharging of completed picking orders.


In the last area, section 3, operates an individual gantry (gantry 3) that takes on the final order picking and retrieval. But these processes do not necessarily need to be performed at this spot. Some picking orders are already put down on the retrieval roller conveyors via section 2 and are accordingly moved out. With the help of industrial trucks, such as lift trucks, stackers etc., the stacks formed on a pallet are then forwarded over the roller conveyors and loaded onto the trucks accordingly.

Finally confirms Mr. Holzer, who has been in charge of the project from the beginning and from a technical point of view at DANA: "If we look at the speeds in connection with the moving masses here, we see that   the best possible result was extracted of the SYSTRAPLAN system. And without the possibility of being able also to transport entire stacks with the gantries, we would not achieve the required performance in production.”

Über die SYSTRAPLAN GmbH & Co. KG

Since 1974 the know-how of more than 60 qualified SYSTRAPLAN employees has stood for intelligent, economical production logistics around the world. The latest concepts for the timber trade and furniture industry, building materials, plastics processing and metal working industries as well as for the granite and rubber processing industries (tire sector), are guarantee for optimum material flow control and storage technology.

This holds true for individual solutions as well as for entirely linked production systems. From the task, the concept through to the completed machine, our experienced employees develop excellent solutions together with the customer for maximum cost effectiveness and efficiency throughout the entire production process. Whether transporting, moving, stacking, storing or feeding – the latest SYSTRAPLAN materials handling equipment ensures that our customers receive dependable products made with state-of-the-art technology for profitability, performance and application possibilities.

For an engineering company like SYSTRAPLAN it is necessary to work intensively on the continued development of their products. At the same time, this not only uncovers potential for rationalization, but also, and more importantly, boosts the quality of products and processes. With this gained knowledge we are able to develop unique selling features, which represent a clear technical and economical advantage for our customers.
