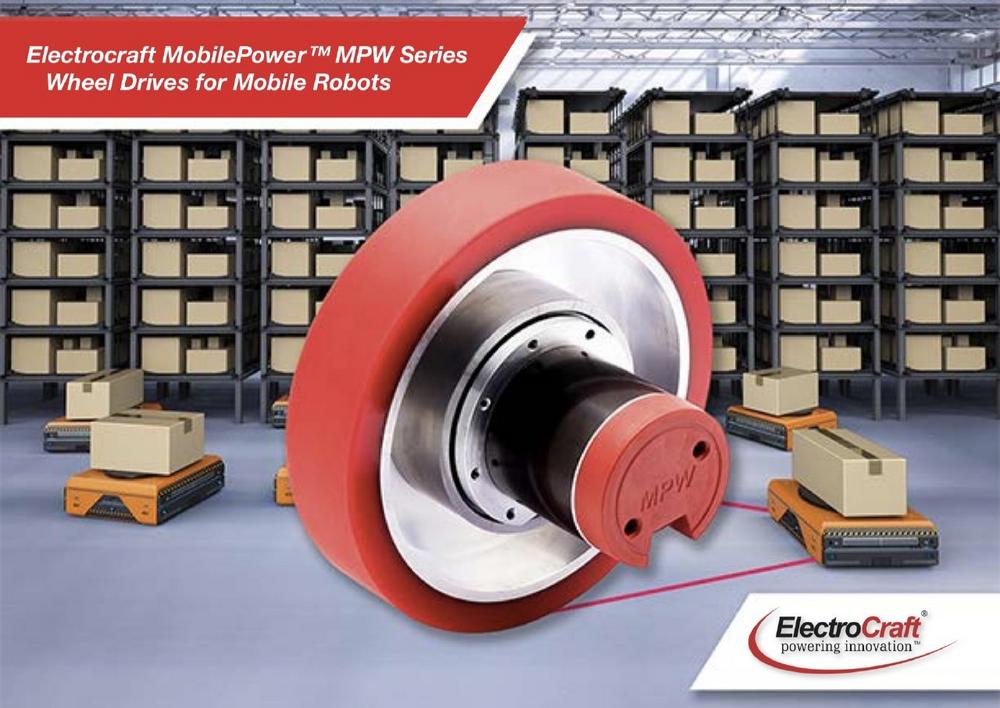

The MPW Wheel Drive features a high torque-density brushless DC motor with a heavy duty integrated planetary gearbox mounted inside the hub of a lightweight aluminum wheel with custom tread. Designed for mobile robot applications, the MPW combines optimum performance with high-efficiency, quiet operation and long life.
ElectroCraft MobilePower™ MPW series wheel drives feature an integrated design that provides increased performance and reliability compared to traditional motor/gearbox/wheel combinations.
-The MPW52 (150 mm Wheel), provides a best in class peak torque of 12.4 Nm (110 lb.in) at 2.4 meters/second, while carrying up to 68 Kg load (150 lbs.) per wheel.
-The MPW86 (200 mm Wheel), provides a robust peak torque of 35 Nm (310 lb.in) at 1.9 meters/second, while carrying up to 227 Kg (500 lbs.) per wheel.
Most impressive is the form factor and weight of the wheel drive assembly; it is small and lightweight while producing industry leading performance. ´The result of the integrated design of the MPW featuring ElectroCraft´s high torque density motor technology is in the overall efficiency and performance of the robotic application´, notes Scott Rohlfs Director of Product Marketing. ´Robotic OEMs can save space and reduce weight, without sacrificing load capacity and speed.´
The MPW provides a complete motorized wheel-drive solution for mobile platform OEMs, eliminating the need for the OEM to design a solution using disparate components from several different suppliers. The ElectroCraft MPW is engineered for integrated efficiency; the motor, gearing, hub, wheel assembly and optional accessories provide a single-source solution for efficient battery-powered AGV and mobile robot applications.
To Learn More, Visit www.electrocraft.com
