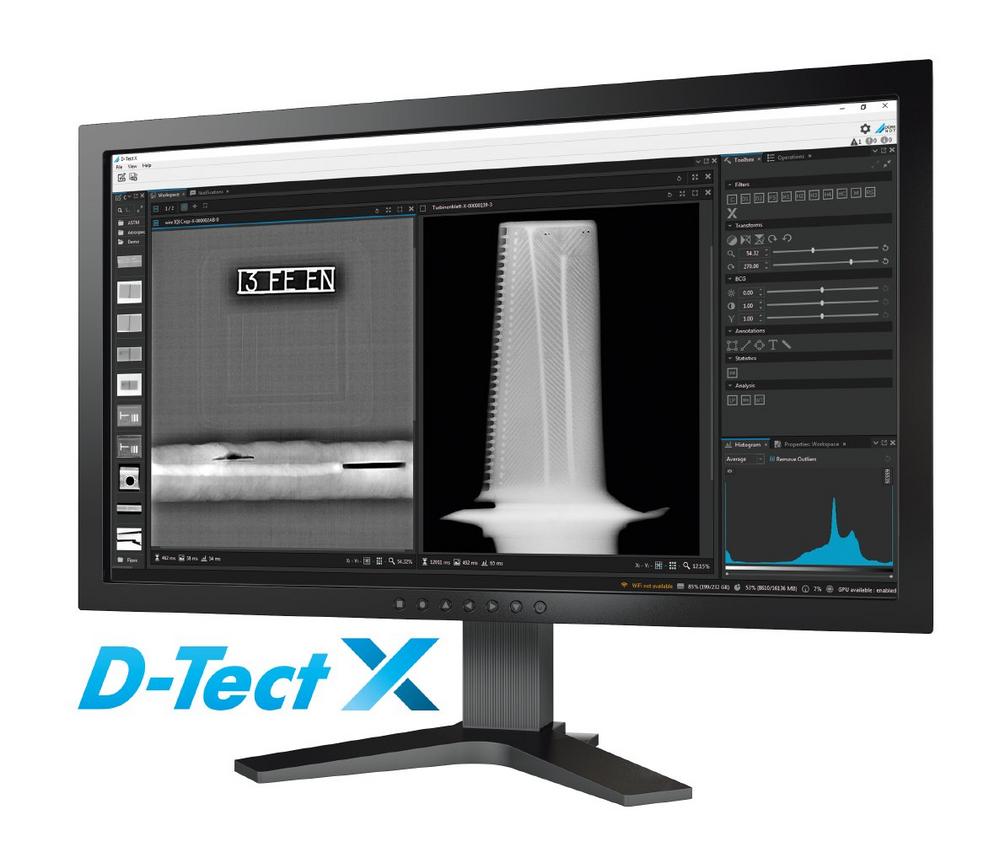

X-ray inspection made easy with D-Tect X

D-Tect X is the latest generation of DURR NDT’s proven software for industrial radiography and was developed from the ground-up in close cooperation with level 3 experts and users. The result is a software solution that sets new standards in terms of performance and user-friendliness and at the same time is extremely flexible. Everything is covered: from image acquisition, image evaluation and report generation to data import and export.

With support for graphics and multi-core processors, D-Tect X is extremely fast, stable and easily copes with large volumes of image data. The software remains responsive at all times and also enables parallel working such as image evaluation while acquiring image data from a device. The intuitive user-interface can be fully customized to the user’s preferences and supports working with multiple monitors and touchscreens.

Image acquisition is fast and intuitive. Preset parameters for imaging devices and user-friendly configuration tools, e.g. flat panel detector calibration, allow easy operation. In addition to DÜRR NDT devices such as imaging plate scanners and flat panel detectors, third-party devices such as film digitizers and X-ray sources are also supported.


D-Tect X of course offers a variety of powerful tools that support the user in image analysis and evaluation according to standards such as ASME, ASTM and ISO. The software also introduces X-Filter: with just one click this new intelligent image optimization filter can highlight all decisive details for quick analysis and evaluation. Another handy feature is image history: every operation applied to an image since it was captured or imported is recorded and changes can be individually enabled and disabled. This also allows full traceability of all changes to any image.

Images and their metadata are saved in DICONDE format by default. This ensures that all images can be displayed and processed by any other system that supports the DICONDE standard.

Test reports are generated via the DRIVE NDT interface, so an individual and comprehensive test report can be created from the order and test data in just a few steps. By integration in a network or connection to a cloud, collaborative processes can also be realized.

With D-Tect X’s wide range of functions, modern architecture and constant development, you are also perfectly equipped for any future challenges.

Über die DÜRR NDT GmbH & Co. KG

DÜRR NDT is a German manufacturer of systems for industrial radiography in the field of non-destructive testing (NDT) and provides Computed Radiography (CR) scanners, Digital Radiography (DR) flat panel detectors (DDAs) and X-ray inspection and analysis software. DÜRR NDT also offers X-ray film processors for mobile use and the unique REACH compliant environmentally-friendly film processing chemistry. New is the cloud-based management software DRIVE NDT for all NDT inspection methods to organize and control the complete NDT workflow including individual test reports, staff, customer and device management, and much more.
