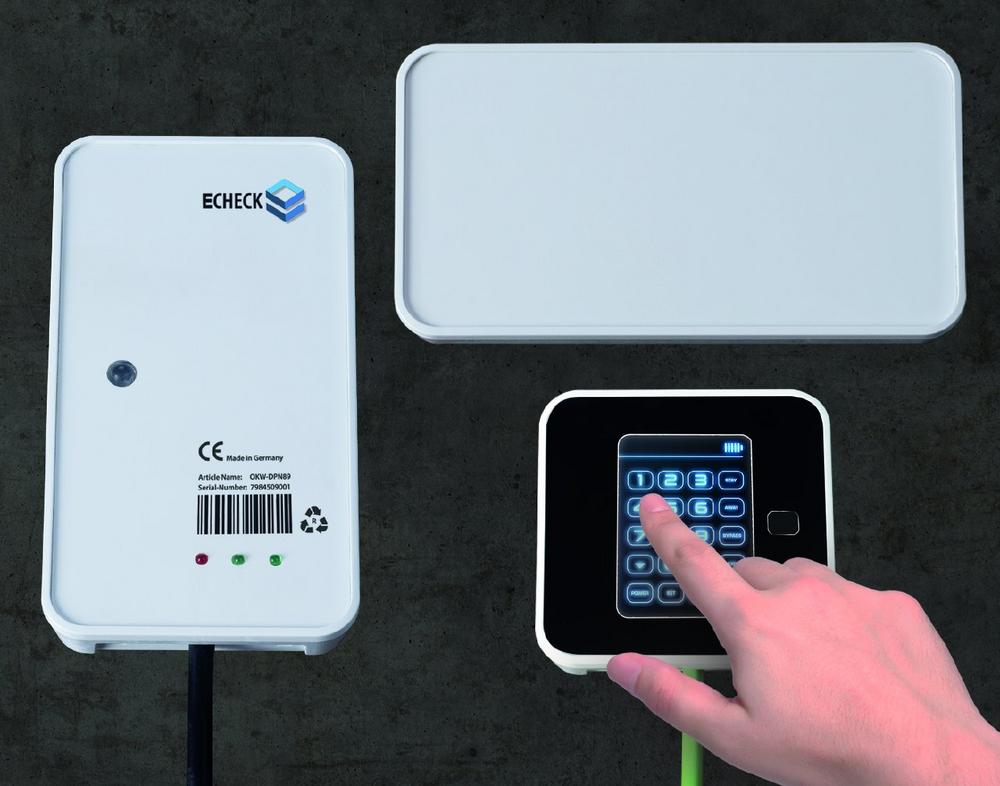

Thanks to their attractive design, SMART-PANELS adapt themselves optimally to their surroundings. Wired control/operating centres or radio-connected devices in the smart home, applications in the IIoT, access controls, monitoring devices, data acquisition systems, medical technology and much more are conceivable. The SMART-PANEL is available from stock in 2 sizes (height x width):
- Square shape with 84 x 84 mm. This version is prepared for concealed installation on standard flush-mounted/cavity wall boxes (Germany, Belgium, Switzerland, Austria with a max. installation opening of 61 mm).
- Rectangular shape with 155 x 84 mm. This version is prepared for concealed installation on simple flush-mounted boxes (Germany, Belgium, Switzerland, Austria up to a max. installation opening of 61 mm), double flush-mounted boxes as well as larger installation boxes (e.g. in Italy, Great Britain and USA) up to a max. height of 145 mm and width of 74 mm.
Both versions are manufactured from high-quality ASA+PC-FR (UL 94 V-0) in the colour traffic white (RAL 9016). The bottom part of the enclosure is highly polished, and the top part has a fine surface structure with a recessed control area for membrane keyboards, display/operating elements and touch displays. Assembly is effected by means of a snap-in function without screws. The enclosure ranges have an IP 40 protection class, sufficient for indoor applications. The range of accessories includes an opening tool for opening the enclosures, hardboard plates to protect the electronic components as well as a glass pane, e.g. for display applications. The SMART-PANEL has a flat, recessed surface for USB or Mini-USB connectors.
A variety of modifications can be implemented on request according to individual customer requirements. These include cutouts for operating/display elements and interfaces, printing, labelling, EMC aluminium vapour plating, special colours/materials, decor foils and assembly work.
Gehäuse und Drehknöpfe
OKW bietet formschöne, ergonomisch günstige Standardgehäuse und Drehknöpfe aus Kunststoff und Aluminium für die OEM Elektro- und Elektronik-Industrie. Abgestimmt auf die jeweilige Kundenanwendung ergänzen funktionale Zubehörteile, eine EMV Aluminiumbeschichtung sowie elektromechanische Komponenten die Standard-Produkte auf vielfältige Weise. Bei Bedarf liefern wir die Gehäuse und Drehknöpfe einbaufertig – auch in kleinen Stückzahlen – nach Ihren Anforderungen und Wünschen.
Standard Electronic Enclosures and Potentiometer Tuning Knobs
Smart ergonomic standard enclosures and potentiometer knobs for OEM electronics. OKW’s award-winning aesthetic designs will transform your products. View our huge range of plastic and aluminium cases as well as tuning knobs below. Our designs are highly versatile so you can find the cases you need quickly and easily. Products also include membrane keyboards; contacts and connections; EMC shielding; compatible parts (batteries, displays, emitters, potentiometers, screws etc.). All OKW enclosures can be customised to your precise requirements – even in low volumes – ready for your PCBs.
