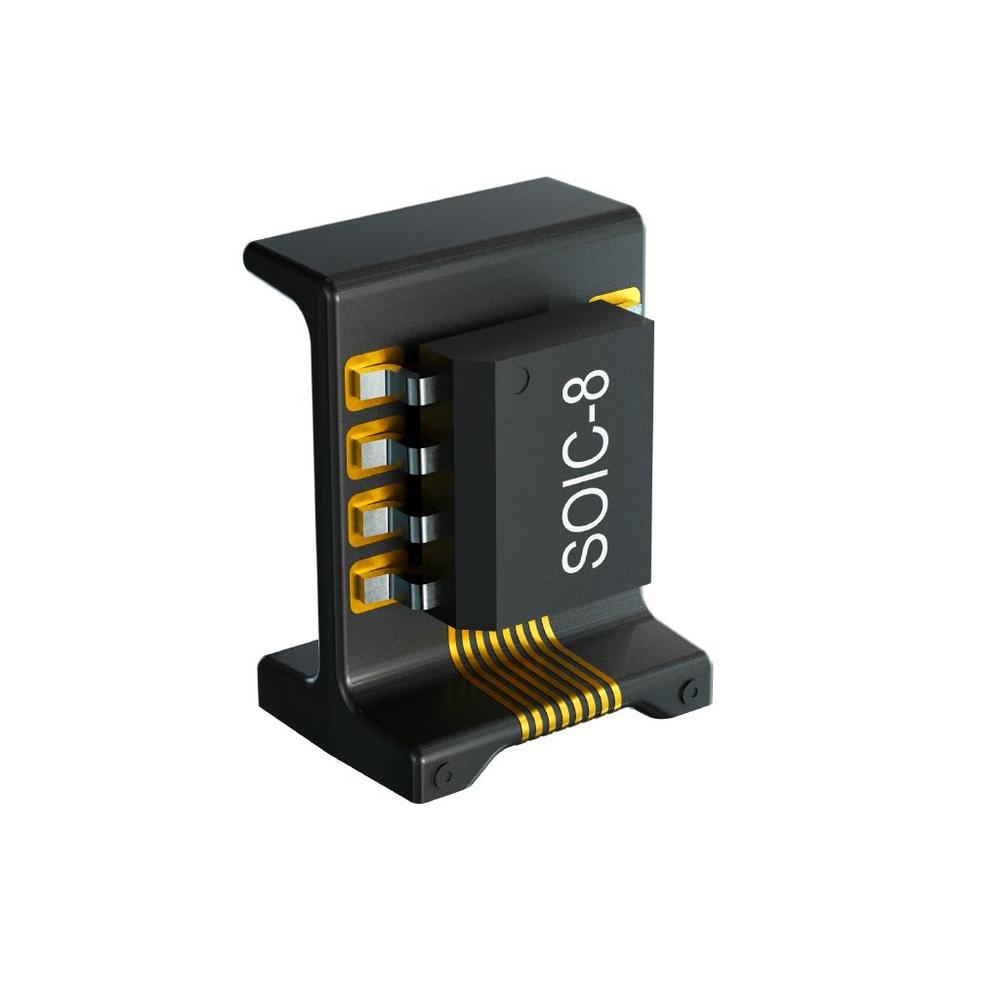

The component carrier serves as a connecting element between a printed circuit board (PCB) and electronic components (such as LEDs, ICs, photo–diodes or sensors).
Automatic mounting of position sensors
In electrical drives, Hall sensors are used to determine the exact position of the rotor and the electronic components are normally attached manually as wired THT components. A mechanical bracket is also mounted which aligns the sensors at an angle of precisely 90 degrees.
Such manual assemblies are no longer necessary when HARTING’s component carriers are used because the sensors are automatically mounted onto the component carrier, making an additional component for arranging and aligning the sensors unnecessary.
The component carrier with the position sensors is delivered by HARTING in a blister belt packaging (tape & reel) for the automatic SMD assembly process. This component carrier replaces the manual processing steps – thus increasing the reproducibility and reducing the processing costs.
About HARTING 3D-MID
HARTING 3D-MID is offering the complete value chain for 3D-MID technologies from a single source, including development/prototyping of customer-specific products, injection moulding, laser direct structuring, metallisation, assembly and connection technology, as well as final inspection. Its core business is the production of mechatronic components for automobile manufacturing, industry, medical technology and sensor systems. HARTING is the largest supplier of 3D-MID components outside of Asia. HARTING 3D-MID is a business unit of the HARTING Technology Group, headquartered in Espelkamp, Germany.
