CONEC Hybrid Connectors B23 receptacle angled, rotatable

With the newly developed CONEC hybrid connector series (B12, B17, B23, B40), a compact hybrid connector system has been developed which combines and transmits the power supply and data transfer to CAT5 via a specially developed hybrid cable. This one-cable technique corresponds to modern connection and interface wiring technology and saves space, time and costs.

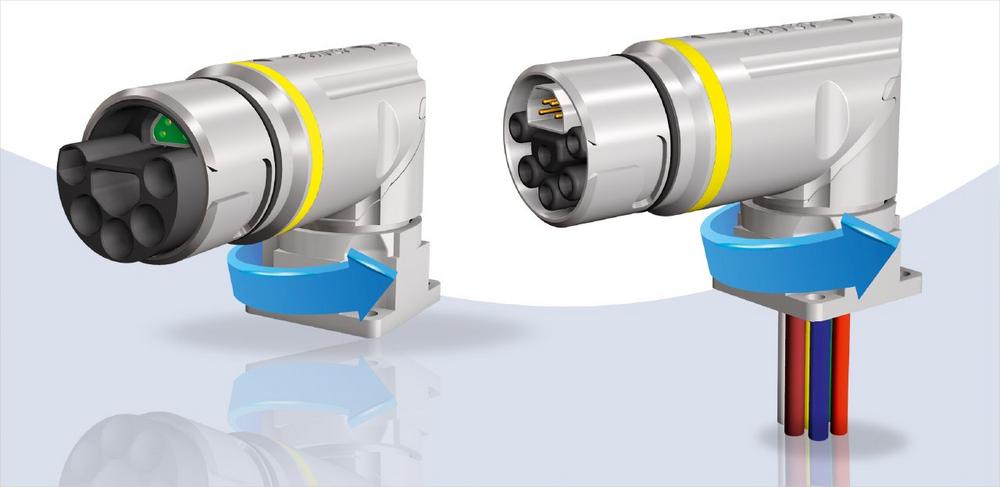

With the angled B23 hybrid receptacle, it is possible to equip servo drives with an output of more than 20 kW with a one-cable solution. By turning the cable outlet in 18 steps, the receptacle can be adjusted to the respective installation situation in the machine and allows a stress-free connection of the cable regardless of the assembly situation.


For the user, it is possible to obtain both pre-assembled receptacles and a field attachable version for self-connection. The field-attachable version uses contacts with crimp connection, Using the Poka-Yoke principle, the assembly is very easy and safe.

Common to all variants is the separately shielded 4-pos. data element for the transmission of Industrial Ethernet according to ISO11 801 Class D or alternatively signals with current levels up to 4 A.

The series is completed by a number of power contacts tailored to the respective application case in order to be able to transfer currents up to 26 A. By default, a 5-pos. version (4+PE) is available for a wire cross-section of 4 mm². Optional is a 6-pos. variant (3+PE+2) with 4 power contacts for each 4 mm² wire cross-section in combination with 2 power contacts for each 2.5 mm² wire cross-section available. This variant can be used, for example, for motors with electric brakes.

Locking of mated connector is secured with a bayonet fastener, so that a time-consuming screw connection by means of a torque wrench is no longer necessary. A quarter turn ensures a secure connection and IP67 protection class. It is important to note that the bayonet can only be locked, if the hybrid connectors are completely mated in. The risk of failure due to incompletely mated or unscrewed connectors is thus greatly reduced.

Three different codings per mating face ensure that connectors that are unpluggable among each other can be used for different applications.

The housing of the angled B23 receptacle is made of resistant nickel-plated zinc die-cast, so the connectors can even used under harsh environmental influences.

Advantages:

  • Space saving by transmitting data and power in one connector
  • Reduced cable expenditure
  • Cost saving
  • Fast and secure connection by bayonet locking
  • Protection class IP67
  • Compact and robust design

Fields of application:

  • Drive technology
  • Machine manufacturing
  • Robotics
  • Assembly and production lines
  • Renewable energy
Über die CONEC Elektronische Bauelemente GmbH

For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.

CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.

The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.

As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.

In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.

CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Republic, Poland and France.

The product portfolio includes connectors of the following categories:

– D-SUB/IP67 D-SUB Connectors
– IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
– CONEC Hybrid Connectors
– Connectors for agricultural and construction machines
– Circular Connectors
– PCB Connectors
– Customer specific solutions

The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
