The LT8491 operates over a 6V to 80V input range and can produce a 1.3V to 80V battery float voltage output using a single inductor with 4-switch synchronous rectification. The device is capable of charging currents as high as 10A depending on the choice of external components. The LT8491 may be paralleled with multiple LT8705 (80V buck-boost controller) devices for higher power operation.
The LT8491 can do a sweep of the full operating range of a solar panel, finding the true maximum power point, even in the presence of local maxima points caused by partial shading of the panel. Once the true maximum power point is found, the LT8491 will operate at that point while using a dithering technique to track slow changes in the maximum point. By using these methods, the LT8491 can fully utilize nearly all the power generated by a solar panel even in non-ideal operating environments.

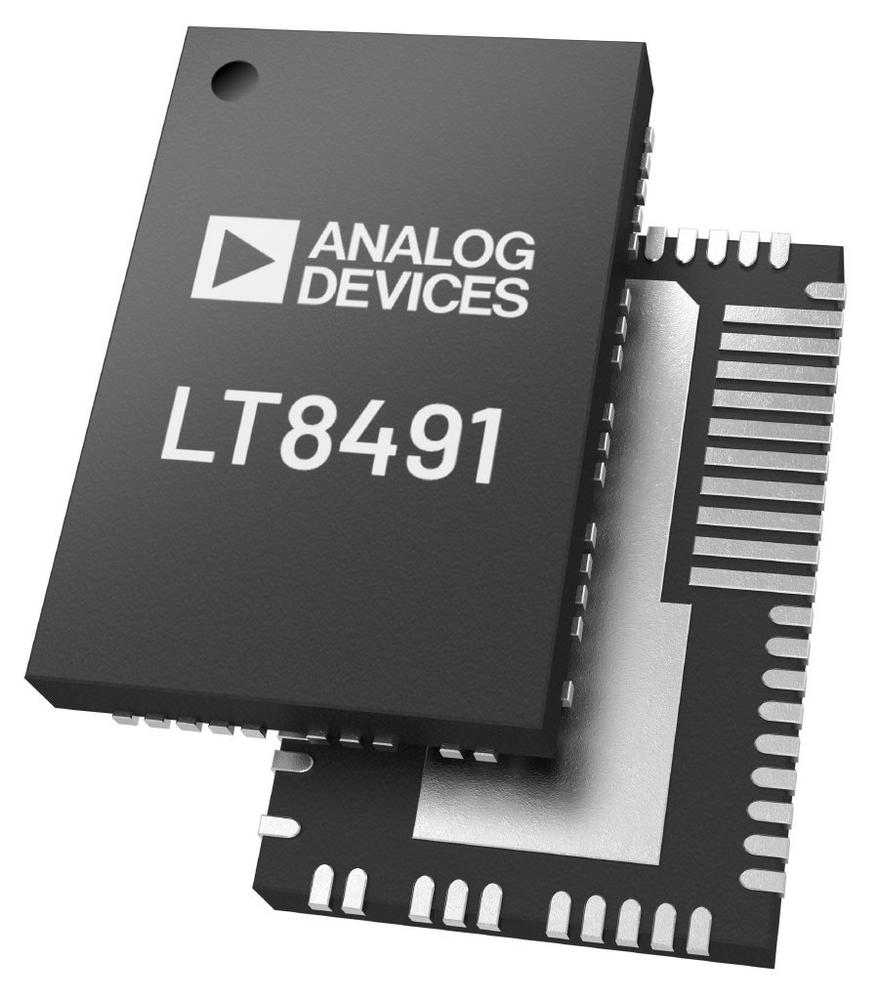

The LT8491 can perform automatic temperature compensation by sensing an external thermistor thermally coupled to the battery. The I2C interface provides complete control of the charger as well as input/output voltage, current, and power values. The LT8491 is available in a low profile (0.75mm) 64-pin 7mm x 11mm QFN package and is guaranteed for operation from -40°C to 125°C.
LT8491 Key Features
- VIN Range: 6V to 80V
- VBAT Range: 1.3V to 80V
- Single Inductor Allows VIN Above, Below, or Equal to VBAT
- Automatic MPPT for Solar Powered Charging
- Automatic Temperature Compensation
- I2C Telemetry and Configuration
- Internal EEPROM for Configuration Storage
- Operation from Solar Panel or DC Supply
- Four Integrated Feedback Loops
Pricing and Availability
Full Production: NOW
Price Each Per 1,000: $10.35
Packaging: 7mm×11mm QFN-64
