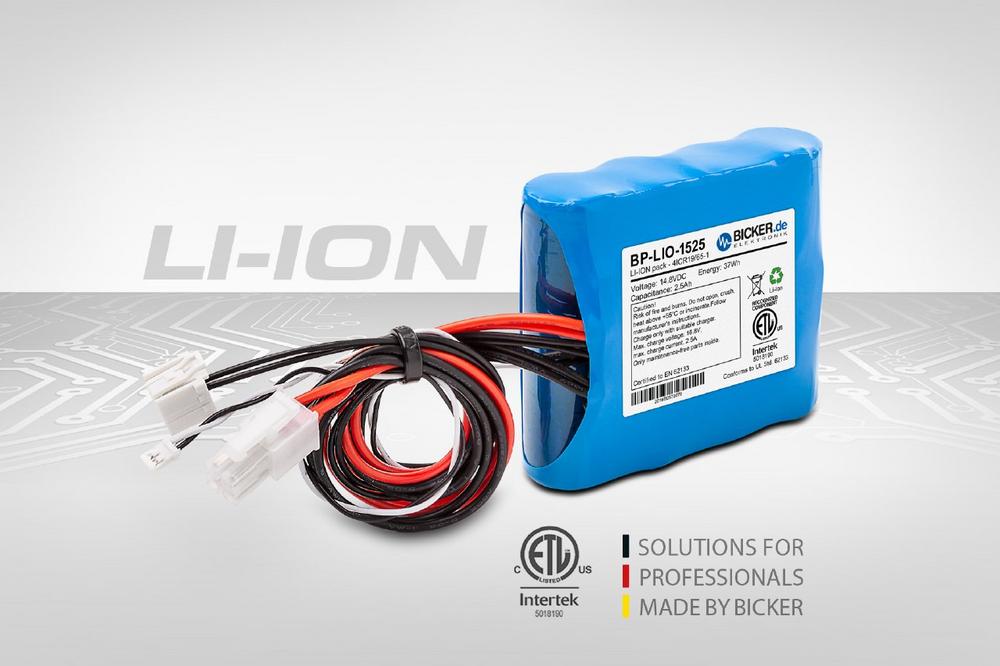

Li-Ion battery pack with IEC/EN/UL 62133-2 for demanding industrial and medical applications

The new Li-Ion battery pack BP-LIO-1525 from Bicker Elektronik (Germany) offers five times more charge/discharge cycles than conventional lead-acid batteries and thus guarantees a particularly long service life. The high-quality battery pack impresses both in industrial use and in medical technology applications with its approvals according to IEC/EN 62133-2:2017 and UL 62133:2017 Ed.2.

4S1P Li-Ion Battery pack mit 14.8 V / 2.5 Ah / 37 Wh


The BP-LIO-1525 has an integrated BMS (Battery Management System) to optimize service life and safety. The BMS monitors and controls the entire charging and discharging process for each battery cell in the energy storage system. The NTC temperature sensor, which is led outside, enables permanent monitoring of the Li-Ion cell temperature for charging optimization and operational safety.

What are the advantages of lithium-ion technology compared to lead-acid batteries?
In terms of system integration and economy (TCO), Lithium-Ion cells enable energy storage devices with space and weight savings of up to 75% – compared to conventional lead-acid batteries. Lithium is the lightest metal in the periodic table and has ideal electrochemical properties for providing high specific energy densities (Wh/kg). Also many times higher than with lead-acid batteries is the number of charging cycles and the realizable Depth of Discharge (DoD). Finally the service life under comparable operating conditions is up to five times longer.

‘System-Present’ function increases safety

With the help of the system present function, the output of the battery pack remains deactivated (output voltage = 0V) until the main current path is released by bridging the communication plug. Otherwise the BMS locks the MOSFET main switch permanently. Since the components on the BMS board run in standby mode, this power-saving function also increases the shelf life of the (charged) BP-LIO-1525.

‘Cell Balancing’ for consistently high performance

The integrated cell balancing ensures a balanced and uniform charge of all cells, so that the full capacity of the lithium-ion battery pack remains permanently usable. This has a particularly positive effect on the service life, number of cycles and capacity of the energy storage.

BP-LIO-1525
All benefits at a glance

  • Li-Ion battery pack 14.8 V / 2.5 Ah / 37 Wh / 4S1P
  • IEC/EN 62133-2 approval for use in medical devices
  • System present function
  • Integrated temperature sensor
  • UL 62133:2017 Ed.2 certified
  • Li-Ion transport certificate UN 38.3
  • High energy density
  • 100% free from lead and cadmium
  • Five times longer service life than lead batteries
  • Suitable for 24/7 continuous operation
  • Immediately available from stock

Direct link to BP-LIO-1525:
https://www.bicker.de/en/bp-lio-1525

Über die Bicker Elektronik GmbH

Bicker Elektronik GmbH, based in Donauwoerth/Germany, has been developing, manufacturing and selling power supplies and UPS systems for over 25 years. These include industrial PC power supplies, industrial and medical grade power supplies, DIN rail power supplies, DC/DC converters and modular UPS systems with durable energy storage devices (Supercaps, LiFePO4, Li-Ion or lead batteries). The portfolio is rounded off by suitable industrial motherboards from leading manufacturers such as Kontron, AAEON, ASUS IOT and Avalue. In addition, Bicker Elektronik offers suitable system components such as memory, M.2 SSD, mSATA, cooling solutions and expansion cards in industrial quality. The extensive storage at the headquarters in Donauwoerth with an online shop guarantees fast and on-time delivery. The company is TÜV certified according to ISO 9001: 2015. The target markets of Bicker Elektronik are Industry 4.0 / IIoT, automation technology, robotics, medical and laboratory technology, measurement and control technology, transportation, maritime, energy, communication and information systems, gaming, POS/POI, digital signage, security and building technology.
