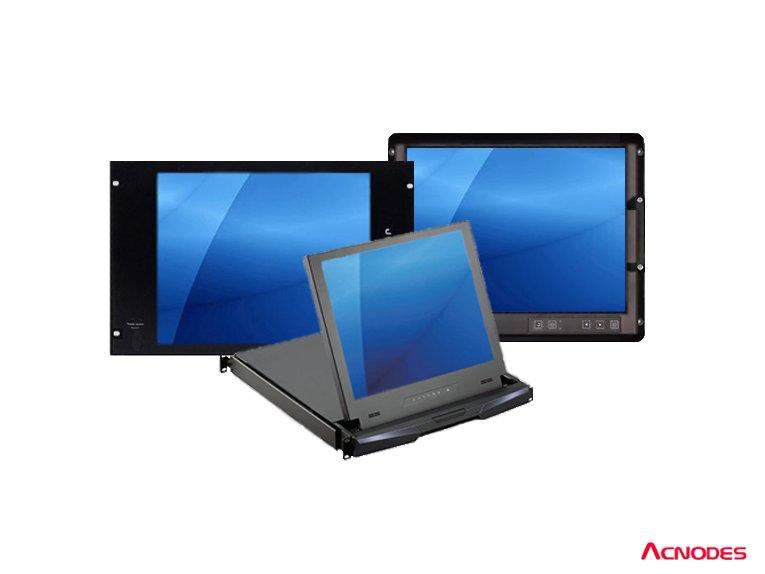

Rackmount Monitors – Directly Mountable
Directly mountable units, on the other hand, have metal rugged housing and fit into the standard 19-inch rack cabinet. Tempered glass is mounted in front of the LCD panel to protect against impact and dust on the LCD panel, providing more efficiency and durability to the product for a longer life span. Each unit is equipped with an industrial LCD (liquid crystal display) panel which provides a flick-free, lightweight, slim size, and low power consumption display compared to the traditional CRT (cathode ray tube) display. Front panel controls such as the On/Off switch and OSD buttons are located on the front of the LCD monitor for easier access around the unit. These OSD functions allow you to adjust the LCD monitor for the best view and provides an auto-shutoff function, which enables the monitor drawer to go right back to its rest position right at the tip of your fingertips. Options are available for touch screen technology with RS-232 or USB connector, IP-rated front bezels, HDMI / Audio / SDI input, and DC power input.
Acnodes’ Rackmount Monitor Series:
17/19/20 inch LCD Monitor
Acnodes offers 17 / 19 / 20" rackmount monitors that are built for harsh working environments and industrial applications. The LCD panels are integrated into a rugged 19" wide rackmount display enclosure and come with VGA + DVI video input. Option for IP65/NEMA4 rated front bezel, DVI/ BNC /HDMI video input, touch screen, and DC input.
Widescreen LCD Monitor – 1080P / 4K Resolution
Widescreen rackmount monitors supporting 1920 x 1080 / 1440 x 900 / 3840 x 2160 display resolution and VGA, DVI-D, HDMI, or Display Port video inputs. The sizes of the casing range from 6U to 9U high with screen sizes starting from 16.2 inches up to 23.8 inches. Options are available for touch screen monitors, 3G/HD/SD-SDI input, and DC power supply.
Military Grade Monitors – MIL-STD-810G
Rackmount monitors designed to satisfy MIL-STD-810F/G environmental and MIL-STD-461E EMC testing standards for industrial and military applications. The rugged military-grade LCD displays come with an aluminum front bezel and anti-reflective glass to reduce environmental impacts on the LCD panel. Built to survive harsh environments, these military-grade monitors feature a fanless cooling thermal design and shield enclosure to control EMI by preventing the transmission of noise signals.
High Brightness Monitors – 1000 Nits
Rackmount monitors integrating an industrial LCD monitor with 1000-nit high brightness displays into a rugged rackmount monitor enclosure designed for both outdoor and indoor industrial display applications. The monitors support VGA + DVI-D video input and provide front OSD controls for easy access. Options are available for an IP65 rated front bezel, touch screen, additional video input modules, and DC power supply.
Rackmount Monitor Drawers – Flip Up Design
The rackmount monitor drawers feature a flip-up design built into a low profile 1U high rack drawer with adjustable rear mounting brackets. The flip-up monitor design provides users with convenient and easy access to the system when it is mounted into a rack cabinet. All of the units come with an OSD (on-screen display) membrane switch that provides effective assistance for administrators to control and adjust the monitors.
Acnodes’ Rackmount Monitor Drawer Series:
Multi-Display Monitors – Dual & Triple LCD Monitors
Dual or triple display rackmount console drawers designed for command and control (C2) systems and military applications. The rackmount consoles feature built-in solid bearing slide rails and a rugged 2U enclosure for transit case portability. Options are available for touchscreen technology, additional video input signals, 1000-nit high brightness displays, and DC power supply.
1U Low Profile Rackmount Monitor Drawer
1U pull-out monitor drawers designed for industrial applications and data centers with space limitations. Housed in a 1U space-saving drawer with a flip-up monitor design, the consoles provide convenient and easy access to the system when mounted in a rack cabinet. The rackmount monitors are available in sizes from 16.2 inches up to 20.1 inches and feature VGA / DVI-D / HDMI video input and optional touch screen displays.
1U High Brightness Rackmount Monitor Drawer
High brightness rackmount LCD monitor drawer integrated into a 1U high rackmount drawer designed for outdoor and indoor industrial applications. It features VGA + DVI-D video input, 1000-nit sunlight-readable display, and a short-depth design for industrial applications with space constraints.
1U Sun Native Rackmount Monitor Drawer
1U rackmount monitor drawers supporting 1152 x 900 SUN Micro resolution for IT server racks and server display terminals. The SUN native display drawers feature VGA + DVI-D video input, front OSD functions, and a 100/240VAC power adapter. Option for DC power input.
Acnodes Corporation has a wide array of product line configurations. They can customize most commercial and industrial computers to one’s specific needs. For information, please visit www.acnodes.com or contact us at email@example.com.
Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military. We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
