There are several solutions approaches for this area. They include extremely expensive signal generators by well established brands, but also highly complex hard- and software solutions. BMC Messsysteme GmbH offers a simple affordable solution for the following applications from their standard product range
• Test stands
• As signal generators
• in testing systems

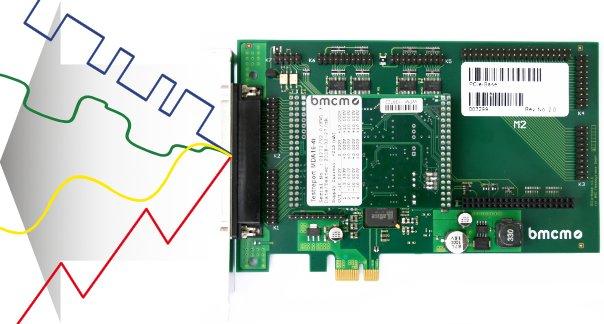

The output of high precision voltage signals in the range of +/-10V with a resolution of 16Bit can be implemented by using the products PCIe-BASE and MDA16-4i.
The motherboard PCIe-Base can be equipped with one or two MDA16-4i output modules, in order to generate 4 respectively 8 analog output signals. Alternatively the module slot can be fitted with an analog measurement module of the MADDA16 series. The galvanic separation improves the operation safety and prevents disturbances.
To make this combination perfect and also Um diese Kombination abzurunden und auch in der Datenerfassung und Analyse, zum Beispiel in Langzeitmessungen und für Triggerfunktionen, ist die Software NextView®4 aus dem selben Haus eine ideale Ergänzung dieser Lösung.
Additional information is available on the website of BMC Messsysteme GmbH (bmcm) at:
The team of BMC Messsysteme GmbH has been developing hardware and software in the field of physical measurement and test engineering for more than 20 years. As manufacturer, the company BMC Messsysteme GmbH sets a great value on the quality of its products, simply "made in Germany", and develops, produces, and distributes the products directly from its business location in the Munich area.
Measurement technology by bmcm is available worldwide and universally applicable. No matter if in vehicles, at test stands, or when monitoring machines and plants: The measuring systems are quickly installed, intuitive to operate, powerful, reliable, and low-priced after all.
