Infrared LED modules with protection class IP 67

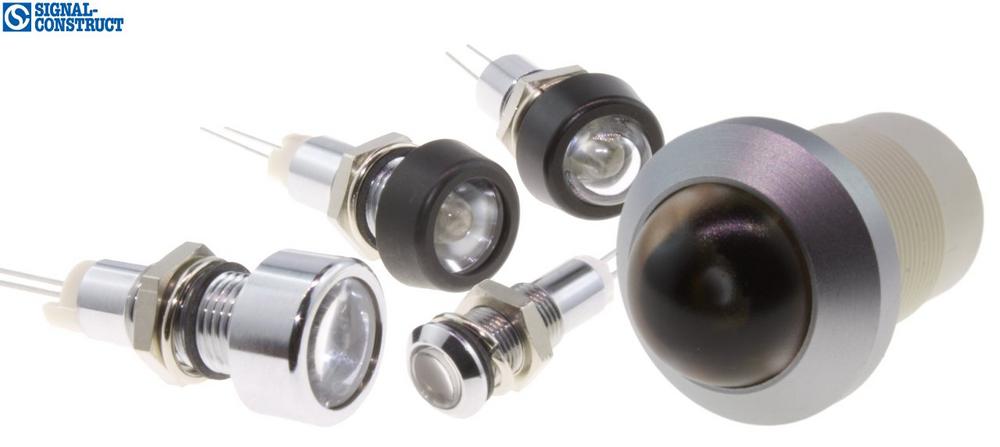

The LED housings of the types SML, SMP and SMK in the installation diameters 6 and 8 mm are not only available with LEDs in the visible range but also with IR LEDs of the wavelengths 850 and 940nm.

The 8mm types have a screwed-on cap made of chrome-plated brass with a specific glass insert sealed with an O-ring, while the lens of the 6mm housing is inserted waterproof with colorless-transparent special epoxy.

The large 22mm housing has a cap made of highly transparent and UV-resistant polycarbonate, which is also sealed with an O-ring. It offers enough space to accommodate various components such as controls, sensors or even a mini camera module.


When installed, all housings comply with protection type IP67 from the front and are also available as fully encapsulated modules if required.

Infrared diodes for PCB assembly are available as line-modules and arrays.
Particularly noteworthy are the DAS3 and DAS5 versions produced exclusively by Signal-Construct, with which leaded IR diodes are available on special spacers in blister tapes for SMD processing on automatic pick-and -place machines.

In addition, there are a variety of processing options for all types of THT LEDs in the field of IR- and photo-diodes.

Cutting, bending, placing onto spacers – find out about the many possibilities in our catalogue "LED processing".

Über die Signal-Construct elektro-optische Anzeigen und Systeme GmbH

Signal-Construct has been an innovative owner-managed family company with a focus on the development and manufacture of opto-electronic parts and components for more than 40 years.

The wide range of products offers high-quality, customer-oriented and sustainable solutions for a wide range of applications, whereby a profound know-how is available due to a deliberately high level of vertical integration.

The focus is on illuminations for controls and indicator lights in the industrial and aviation sector, reading lights for rail vehicles as spots or with flexible metal tubing, LED spots for accent lighting, and status indicators for front and PCB installation.

The production program is supplemented by standard and customer-specific light guide components and an area of LED processing, in which the processing of THT-Visible as well as IR and photodiodes or the reworking into SMT-processable components is possible.
